Laboratory Safety Storage Cabinets from Jeio Tech

New to our portfolio: Jeio Tech’s safety storage cabinets offer 90 minute fire resistance according to European standard (EN14470-1). This new range of Type 90 safety storage cabinets are robust, secure and come with a number of safety features as standard.

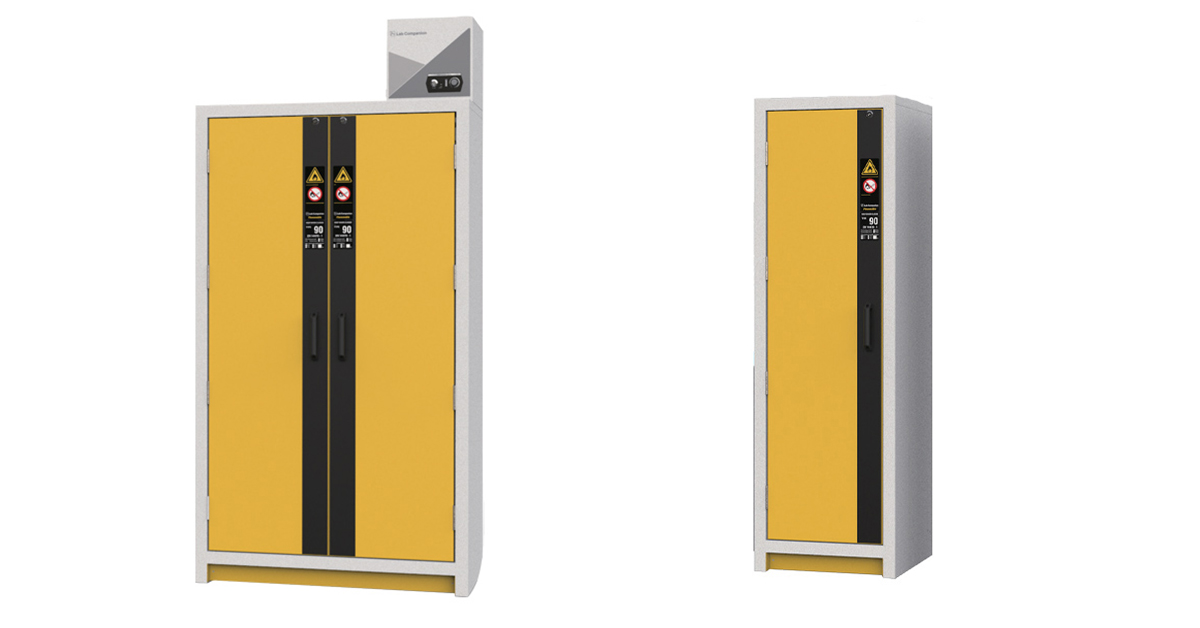

Laboratory safety storage cabinets, Type 90
Safety features

Fire resistance: Type tested in accordance with European standard EN14470-1 [1].
Fire test according to EN 1363-1.

Fire response: Cabinet doors will automatically close if the temperature reaches 50°C.
Automatically sealing ventilation: Ventilation and exhaust holes will automatically close if the ambient temperature reaches 70°C (±10°C) preventing the flow of heat from the outside, in the event of a fire.

Safe ventilation: These cabinets feature a ventilation system that prevents the built up of flammable gas or vapour within. Cabinets can be connected to an existing extraction system, alternatively an optional extraction model (EM-33) can be fitted for filtering flammable gases [2].

Safe storage: An effluent reservoir/sump assists with safe-handling of any leaked materials.

Robust and secure

Jeio Tech’s safety storage cabinets are robust with a chemically-resistant interior and shelves. The shelves are 30mm deep and can store up to 80kg (per shelf).

The cabinet walls have a triple-insulated structure. Whilst the doors are fitted with door stops for convenience and locks to prevent unauthorised access.

A forklift space at the base of the cabinets and levelling feet, aid transportation and installation, respectively.

Type 90 models

There are four models available within the 90 minute flammable/safety storage cabinets range. Visit the product pages to review full specifications:

Single door model, low height: SC3-90F-0806D1D-C

Double door model, low height: SC3-90F-0812D2D-C

Single door model, tall: SC3-90F-1906D1-C

Double door model, tall: SC3-90F-1912D2-C

Options include: Stainless steel shelves, drawers (epoxy-coated steel or stainless steel), PP trays, stainless steel collecting reservoir/sump, EM-33 extraction model and filters.

If you would like to find out more about our range of laboratory flammable safety cabinets, please contact us on: enquiries@medlinescientific.co.uk

[1] European standard (EN14470-1): in the event of a fire, the internal temperature kept below 180K for up to 90 mins.

[2] A choice of filters is available for handling a variety of chemicals.
