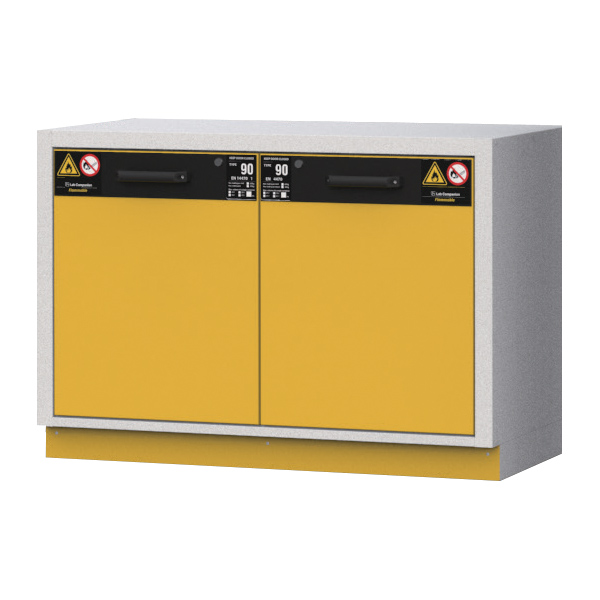

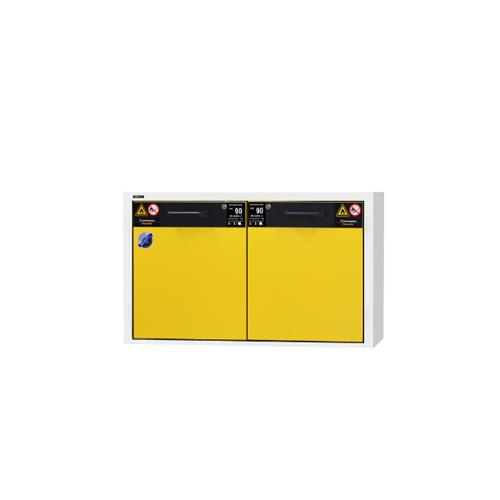

JeioTech SC3-90F-0812D2D-C Safety Storage Cabinet, Type 90

SKU: AAAF390130
BRAND:

POA

JeioTech Safety storage cabinet / flammable storage cabinet for storage in accordance with EN14470-l with fire resistance of up to 90 minutes.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Model SC3-90F-0812D2D-C is a low-height, double door cabinet with epoxy-coated collection sump. Cabinet can be fitted with EM-33 extraction module for flammable gases and plinth: See accessories for more information.
Contact us for information on cabinets with stainless steel collection sump.

Features

Safety features

• Fire resistance – performance is in accordance with European standard (EN14470-1): internal temperature kept below 180K for up to 90 minutes in the event of fire

• Fire response – When the temperature reaches 50°C, the door automatically closes

• When the ambient temperature reaches 70°C ±10°C, the exhaust holes and ventilation openings automatically close

• Ventilation/exhaust system to prevent built up of flammable vapour/gas

• Chemically-resistant interior material for long-term use

• Effluent reservoir / sump

• Optional extraction module to filter flammable gas

Robust and secure

• Walls are constructed of triple-insulated structure

• Key lock is provided as standard to prevent unauthorised access

• Levelling feet for stability and forklift fork space for convenient installation

• Height can be adjusted: 730mm / 820mm

Specification

SC3-90F-0812D2D-C

Internal volume: 244L

Doors: 2

Interior dimensions, W x D x H: 496 x 396 x 622mm (x2 compartments)

Exterior dimensions, W x D x H: 1200 x 560 x 730(or 820)mm

Shelves (standard / max.): 0/0

Max. load: 40kg per compartment

Weight: 220kg
