JeioTech SC3-90F-1906D1-C Safety Storage Cabinet, Type 90

SKU: AAAF390140


JeioTech Safety storage cabinet / flammable storage cabinet for storage in accordance with EN14470-l with fire resistance of up to 90 minutes.

Use this quote list to submit your required products to Medline in order for a quotation.

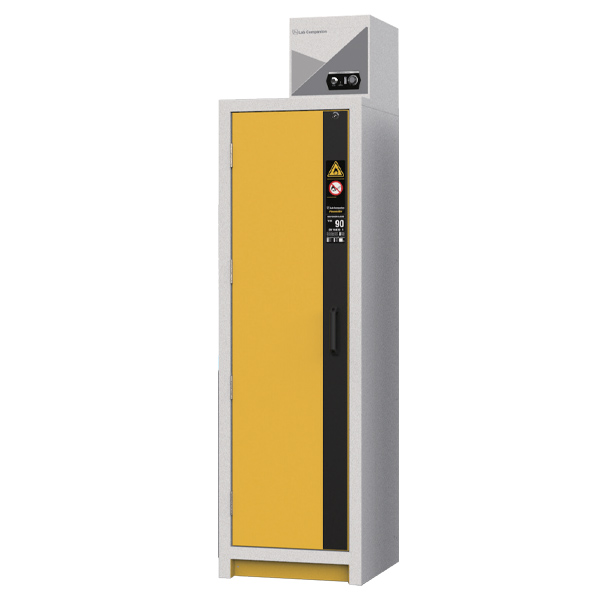

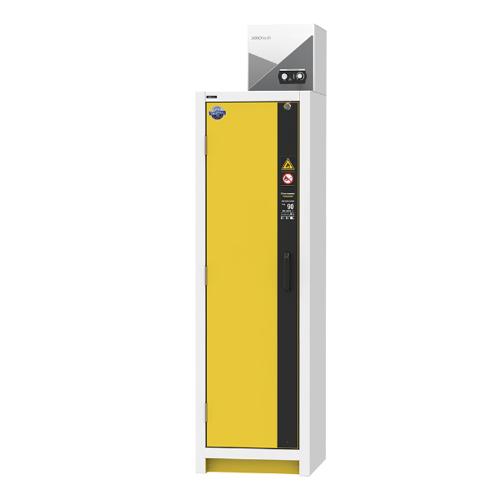

Model SC3-90F-1906D1-C is a tall, single door cabinet with 3 epoxy-coated shelves and collection sump. Cabinet can be fitted with EM-33 extraction module for flammable gases and additional shelves and drawers: See accessories for more information.
Contact us for information on cabinets with stainless steel shelves and collection sump.

Please note: Delivery is not included.


Safety features

• Fire resistance – performance is in accordance with European standard (EN14470-1): internal temperature kept below 180K for up to 90 minutes in the event of fire

• Fire response – When the temperature reaches 50°C, the door automatically closes

• When the ambient temperature reaches 70°C ±10°C, the exhaust holes and ventilation openings automatically close

• Ventilation/exhaust system to prevent built up of flammable vapour/gas

• Chemically-resistant interior material for long-term use

• Effluent reservoir / sump

• Optional extraction module to filter flammable gas

Robust and secure

• Store up to 80kg per shelf. Shelves are 30mm deep and epoxy-coated for chemical resistance (stainless steel available as an option)

• Walls are constructed of triple-insulated structure

• Key lock is provided as standard to prevent unauthorised access

• Levelling feet for stability and forklift fork space for convenient installation



Internal volume: 357L

Doors: 1

Interior dimensions W x D x H: 453 x 484 x 1629mm

Exterior dimensions, W x D x H: 601 x 625 x 1952mm

Shelves (standard / max.): 3/5

Max. load per shelf: 80kg

Weight: 270kg
