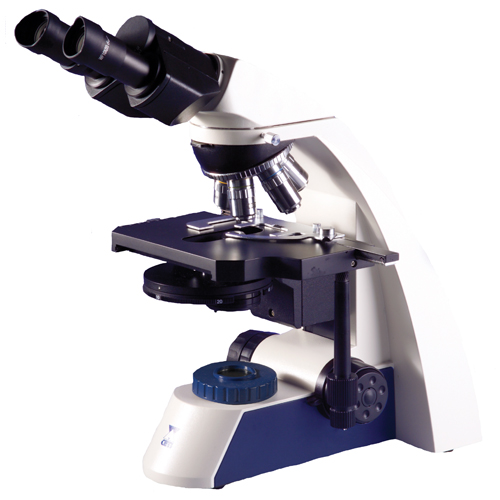

Ceti Magnum Binocular Compound Microscope with 10x, 20x, 40x and 100x Phase Contrast Objectives

SKU: 2638.0000M
BRAND:

£2,063.94

Ceti’s Magnum Binocular Compound Microscope with Phase Contrast Objectives comes with a selection of plan achromatic positive phase objectives (CCS optics) and a quintuple reversed nosepiece.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Ceti’s Magnum Binocular Compound Microscope with Phase Contrast Objectives comes with a selection of plan achromatic positive phase objectives (CCS optics) and a quintuple reversed nosepiece.

This biological microscope is ideal for routine use in general QC conditions and routine examinations of slide mounted samples.

Optional accessories include brightfield objectives, a polarising set, a HBO 100W fluorescent attachment, and darkfield condensers.

Additional information

Pack Size

1

Features

• Sturdy base for comfortable viewing over long periods
• Wide-field 10X, FN20 eyepieces with dioptric adjustment
• Quintuple, reversed nosepiece with four Phase Contrast objectives
• Binocular eyepiece tube
• Bright, white LED illumination with intensity control
• Full Köhler illumination

Specification

Optical Head:  Binocular, inclined at 30°, and dioptre adjustment on one eyepiece

Eyepieces:  10x / 20mm widefield

Objectives:  10x, 20x, 40x & 100x Phase Contrast

Condenser:

Pre-condenser with field diaphragm

Phase contrast turret type – NA 1.25

4 phase annular stops, centrable and 1 neutral brightfield position

Annular rings individually adjusted for simple operation

Iris diaphragm

Stage:  210 x 140mm with built-in mechanical stage

Focusing Knobs:  Coaxial coarse and fine with stop and tension adjustment ring

Illumination:  3W LED with intensity control

Supplied With:  Blue and green filter, two spare fuses, immersion oil (10ml), soft rubber eyecups, dust cover and instruction manual



Downloads

Click here for download View File
