£4,259.61

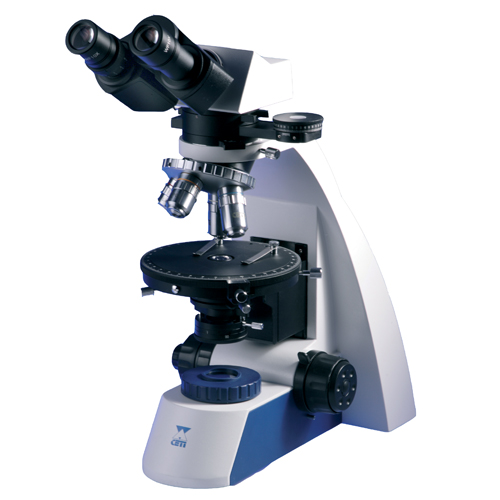

Ceti-s Magnum Binocular Compound Microscope for Polarisation comes with a selection of tension free and precentered objectives (CCS optics) and a quadruple nosepiece.
Ceti’s Magnum Binocular Compound Microscope for Polarisation comes with a selection of tension free and precentered objectives (CCS optics) and a quadruple nosepiece.
This biological microscope is ideal for routine use in general QC conditions and routine examinations of slide mounted samples.
Optional accessories include phase contrast sets, a HBO 100W fluorescent attachment, and darkfield condensers.
| Pack Size | 1 |
|---|
• Sturdy base for comfortable viewing over long periods
• Widefield 10x / FN 20 eyepieces with dioptric adjustment
• Quintuple, reversed nosepiece with four Polarised objectives
• Binocular eyepiece tube
• Bright, white LED illumination with intensity control
• Full Köhler illumination
Optical Head
Trinocular, inclined at 30°, with photo port
Interpupillary Distance Adjustment (Siedentopf Type): 55 to 75mm
Dioptre adjustment on one eyepiece
Bertrand lens with iris diaphragm
Analyser
Slit under the optical head to accept lambda compensating plates
Eyepieces: 10x / 20mm widefield
Objectives: 4x, 10x, 40x, 60x Infinity Corrected Plan Achromatic
Condenser: Brightfield Abbe (NA 1.25) with iris diaphragm; Pre-condenser with field diaphragm. Polariser
Stage: Round, centrable with scale and two stage clips
Focusing Knobs: Coaxial course and fine with stop and tension adjustment ring
Mains Power: 220 – 240V, 50 / 60Hz
Illumination: 3W LED with intensity control
Supplied With: Blue and green filter, 2 spare fuses, immersion oil (10ml), soft rubber eyecups, dust cover and instruction manual
