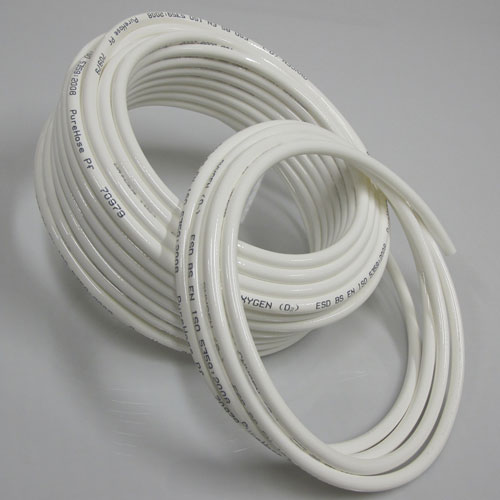

White Purehose 6.7mm Phthalate Free PU ESD Medical Gas Hose (Oxygen)

Description

The White 6.7mm Phthalate Free PU ESD Medical Gas Hose (Oxygen) is designed to reduce the risk of explosions from modern anaesthetic gases.

All the materials used are USP VI compliant.

Designed to be fully compliant with all the most recent specifications and conforms to BS EN ISO 5359:2014 + A1:2011
All the materials used are USP VI compliant
The raw material used is composed of ingredients which meet the current requirements of the FDA for food contact applications when used in accordance with the requirements and limitations of 21 CFR: 175.105; 177.1680 for repeat use applications only; 177.2600.
Does not contain plasticizer of any form & does not work harden
Will not expose patients to any potentially harmful phthalate vapours
The material is designed to be used in areas that require static dissipation.
All the mating surfaces are made from ESD material with a surface resistivity of 1.1E11 Ω/Sq when tested to ASTMD 257.
This level is more than sufficient to prevent any risk promoting static build up
Superior abrasion resistance & superior operating temperature range

Colour: White

Gas Type: Oxygen

Internal Diameter (mm): 6.7

Coil Length (m): 30

Internal Diameter (mm): 6.7

External Diameter (mm): 12.7

Stripe Width (mm): 2.8

Materials: USP VI ESD TPU (Liner and Cover) and USP VI TPU (Gas Barrier Layer)

Liner and Cover Resistivity: 1.1 x E11 (ASTM D-257)

Burst Pressure: 10,000 kPa (100 Bar) at 23°C

Internal Dimensions (mm): Conforms to EN ISO 1307

Layer Adhesion: 5.5kN/m (min.) – EN ISO 8033

Deformation Under Pressure: 1.9% (diameter) and 1% (length) at 1400kPa

Occlusion Resistance: No flow reduction (BS EN ISO 5359:2008, Clause 5.7)

Contaminant Test: No indication (Gastec Polytec 107 tubes)

Minimum Life Cycle: 5 years at 23°C and ambient humidity
