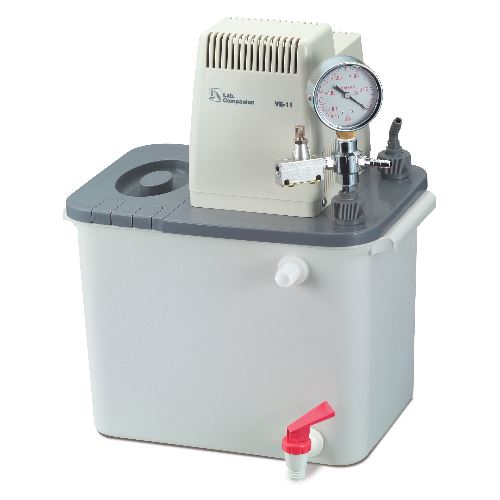

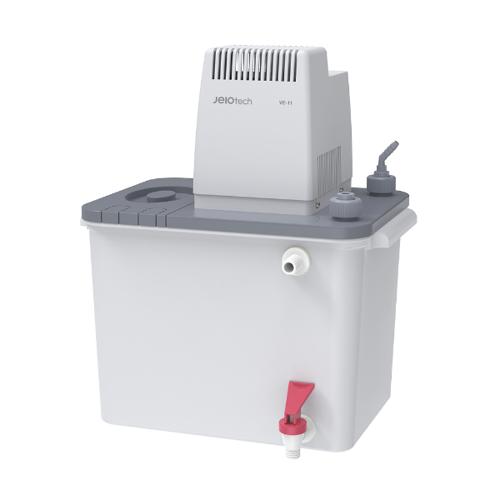

Jeio Tech VE-11 Water Jet Aspirator Vacuum Pump

SKU: AAH71015K
BRAND:

£967.94

Portable dual-channel, water jet aspirator pump. By creating a vacuum by means of the Venturi effect, the VE-11 aspirator pump is suitable for rotary vacuum evaporation, decompression distillation, vacuum drying and vacuum filtering.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Portable dual-channel, water jet aspirator pump. By creating a vacuum by means of the Venturi effect, the VE-11 aspirator pump is suitable for rotary vacuum evaporation, decompression distillation, vacuum drying and vacuum filtering. A built in circulating pump and water tank make the unit portable.

The circulating pump pumps water silently across a set of aspirators and is therefore clean and efficient. The built-in check valve prevents backflow of water into the aspirator pump.

Features

Portable dual-channel, jet aspirator pump. By creating a vacuum by means of the ‘Venturi’ effect, the VE-11 aspirator pump is suitable for rotary vacuum evaporation, decompression distillation, vacuum drying and vacuum filtering. A built in circulating pump and water tank make the unit portable.

The circulating pump pumps water silently across a set of aspirators and is therefore clean and efficient. The built-in check valve prevents backflow of water into the aspirator pump.

Specification

Volume (L):  9.5

Vacuum (Mpa/mmHg):  0.0906 / 680

Free-Air Capacity:  18L/minute (0.6cfm) x 2ea

Construction (bath/aspirator):  Polypropylene / Nicked-coated brass x 2

Dimensions (mm)

     Bath Interior; W x L x D:  298 x 210 x 227

     Exterior; W x L x H:  330 x 265 x 390

     Inhale Nozzle:  External Ø 9.5 x 2

     Drain Cock, Over-Flow Nozzle (Ø):  17

Weight (Kg):  5.7

Downloads

Click here for download View File
