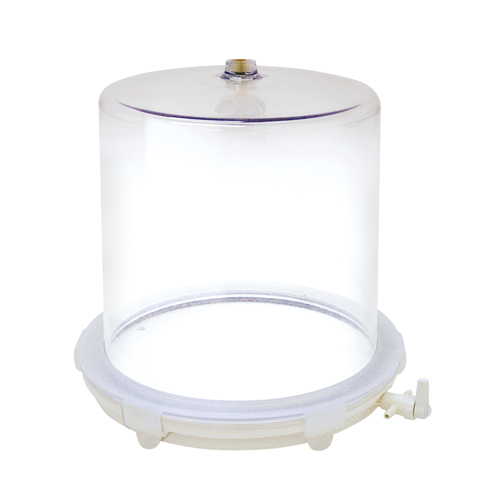

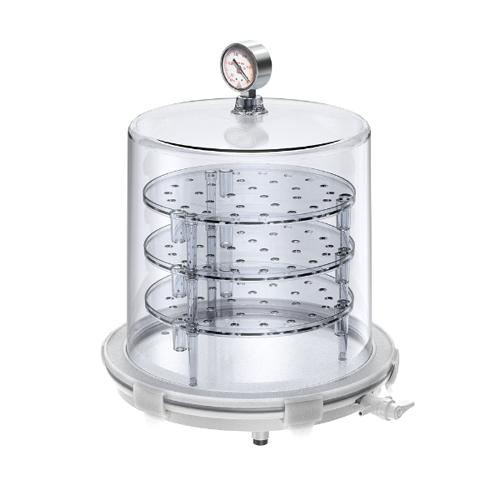

Jeio Tech VDP-30G, 25 Litre Cylindrical Vacuum Desiccator

SKU: AAAD3121
BRAND:

£885.02

With a high-quality silicone O-ring and specially designed ‘Locking Clip’, Jeio Tech’s VDP-30G, 25 Litre Cylindrical Vacuum Desiccator offers light weight yet flexible strength and provides outstanding vacuum capability with virtually no leakage.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

With a high-quality silicone O-ring and specially designed ‘Locking Clip’, Jeio Tech’s VDP-30G, 25 Litre Cylindrical Vacuum Desiccator offers light weight yet flexible strength and provides outstanding vacuum capability with virtually no leakage.

Features

• Maximum vacuum of 1 Torr (1.33 x 10-4Mpa) for more than 72 hours
• High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment
• Highly transparent, shatter-proof, non-corrosive and has an easy-to-clean polycarbonate (PC) construction
• Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release or gas exchange. The barbed fitting on each side secures attachment of tubing. Additional three-way stopcocks are installable (max. 4 stopcocks)
• Maximised utilisation of internal space using a maximum four to six shelves depending on the product size
• Stackable space-saving design allowing efficient usage of cramped lab space
• Easy vacuum level checking, using the vacuum gauge attached to the front door
• Four built-in ports allowing easy attachment of tubing

Specification

Volume (L):  25

Nozzle, Ø (mm):  9.5

Max. Permissible Vacuum (Mpa):  1.33 x 10-4

Construction

     Lid/Bottom and Body Base:  Polycarbonate

     Perforated Sample Tray and Drying Agent Tray/Locker:  Polypropylene

     Vacuum Seal:  Silicone Rubber

External Dimensions; Ø x H (mm):  385 x 384

Weight (Kg):  4

Downloads

Click here for download View File
