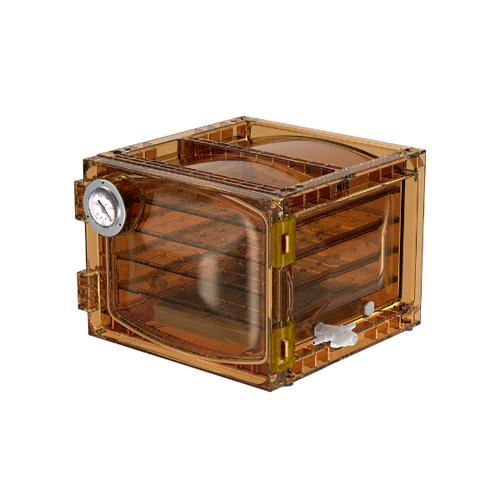

Jeio Tech VDC-21U, 23 Litre Cubic Vacuum Desiccator with UV Block

SKU: AAAD4121
BRAND:

£1,193.94

The Jeio Tech VDC-21U, 23 Litre Cubic Vacuum Desiccator is constructed as an integrally moulded cubic box, producing excellent vacuum capability with no leakage and great durability.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech VDC-21U, 23 Litre Cubic Vacuum Desiccator is constructed as an integrally moulded cubic box, producing excellent vacuum capability with no leakage and great durability.

This transparent laboratory desiccator has a vacuum gauge displayed on its front door allowing users to easily check vacuum levels. With its stackable and space-saving design, samples can be placed efficiently inside the desiccator.

Features

• Maximum vacuum of 1 Torr (1.33 x 10-4Mpa) for more than 72 hours
• High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment
• Highly transparent, shatter-proof, non-corrosive and has an easy-to-clean polycarbonate (PC) construction
• Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release or gas exchange. The barbed fitting on each side secures attachment of tubing. Additional three-way stopcocks are installable (max. 4 stopcocks)
• Maximised utilisation of internal space using a maximum four to six shelves depending on the product size
• Stackable space-saving design allowing efficient usage of cramped lab space
• Easy vacuum level checking, using the vacuum gauge attached to the front door
• UV blocking coating minimises damage to or discolouration of light-sensitive samples
• Four built-in ports allowing easy attachment of tubing

Specification

Volume (L):  23

Nozzle Diameter (mm):  9.5

Max. Permissable Vacuum (Mpa):  1.33 x 10 – 4

Shelves

     Number of Shelves (standard/max.):  2/4

     Max. Load Per Shelf (Kg):  5

Construction

     Body and Perforated Sample Tray:  Polycarbonate

     Drying Agent Tray/Locker:  Polypropylene

     Vacuum Seal:  Silicone Rubber

Dimensions; W x D x H (mm)

     Internal:  346 x 365 x 246

     External:  420 x 392 x 281

Weight (Kg):  8.2
