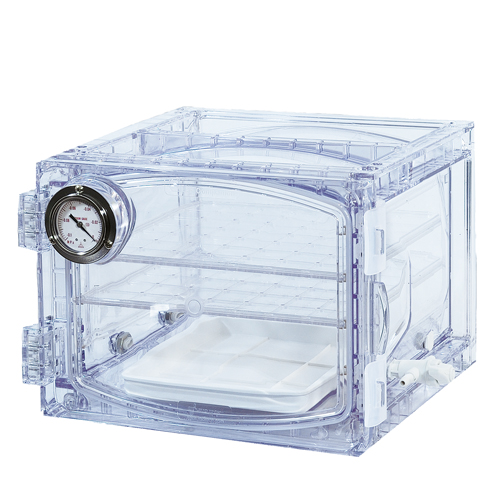

Jeio Tech VDC-21, 23 Litre Cubic Vacuum Desiccator

SKU: AAAD4021
BRAND:

£1,542.13

With its integrally moulded cubic box design, the Jeio Tech VDC-21, 23 Litre Cubic Vacuum Desiccator provides outstanding vacuum capability with virtually no leakage and exceptional durability as well as usable space for consistent sample storage or carrying out experiments for a long period of time.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

With its integrally moulded cubic box design, the Jeio Tech VDC-21, 23 Litre Cubic Vacuum Desiccator provides outstanding vacuum capability with virtually no leakage and exceptional durability as well as usable space for consistent sample storage or carrying out experiments for a long period of time.

This transparent, polycarbonate laboratory desiccator is durable, easy-to-clean, chemically resistant and allows users to easily view samples.

Additional information

Pack Size

1

Features

• Maximum vacuum of 1 Torr (1.33 x 10-4Mpa) for more than 72 hours
• High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment
• Highly transparent, shatter-proof, non-corrosive and has an easy-to-clean polycarbonate (PC) construction
• Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release or gas exchange. The barbed fitting on each side secures attachment of tubing. Additional three-way stopcocks are installable (max. 4 stopcocks)
• Maximised utilisation of internal space using a maximum four to six shelves depending on the product size
• Stackable space-saving design allowing efficient usage of cramped lab space
• Easy vacuum level checking, using the vacuum gauge attached to the front door
• Four built-in ports allowing easy attachment of tubing

Specification

Volume (L):  23

Nozzle Diameter (mm):  9.5

Max. Permissable Vacuum (Mpa):  1.33 x 10-4

Shelves

     Number of Shelves (standard/max.):  2/4

     Max. Load Per Shelf (Kg):  5

Construction

     Body and Perforated Sample Tray:  Polycarbonate

     Drying Agent Tray/Locker:  Polypropylene

     Vacuum Seal:  Silicone Rubber

Dimensions; W x D x H (mm)

     Internal:  346 x 365 x 246

     External:  420 x 392 x 281

Weight (Kg):  8.2
