Jeio Tech VB-40G, 40 Litre Viscosity Bath

SKU: AAH43402K
BRAND:

£5,628.47

The Jeio Tech VB-40G, 40 Litre Viscosity Bath is a high precision heating bath used for kinematic viscosity measurement, providing ultra temperature control with excellent visibility.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

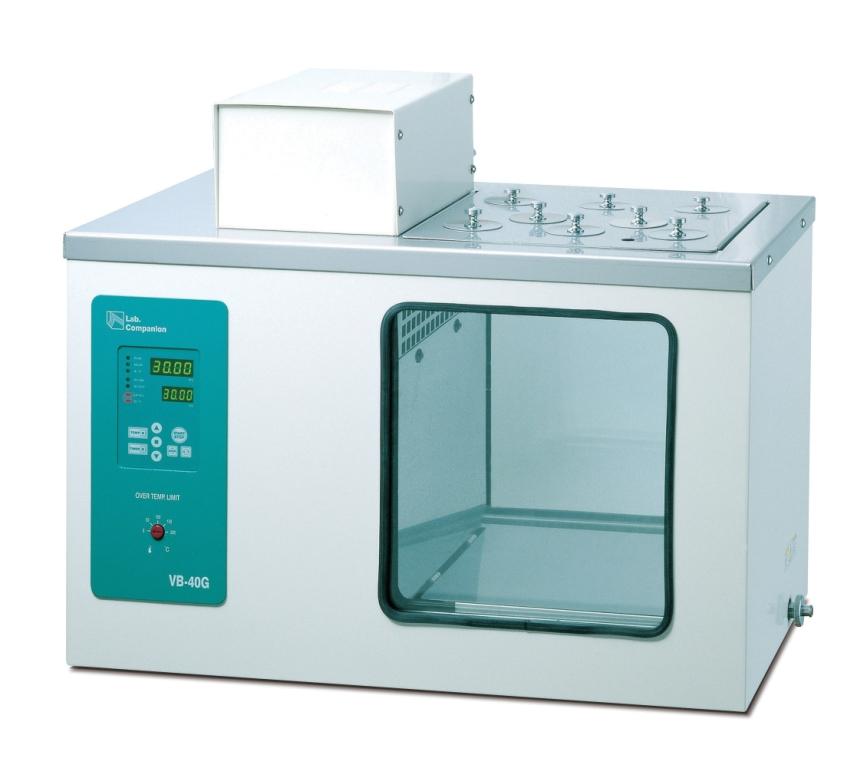

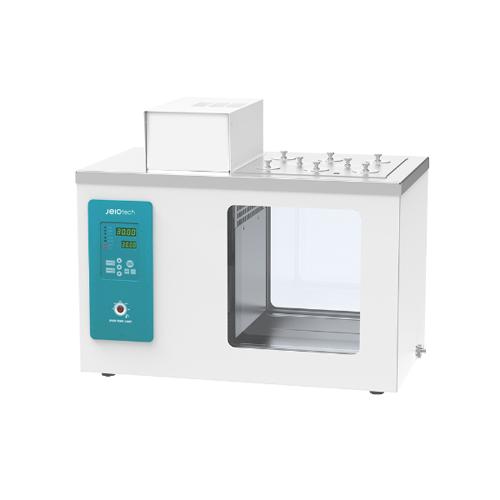

The Jeio Tech VB-40G, 40 Litre Viscosity Bath is a high-precision heating bath used for kinematic viscosity measurement, providing ultra temperature control with excellent visibility.

This unit is supplied with an easy-to-read digital LED display, double-tempered safety glass windows, and a baffle plate screen to decrease bath fluid turbulence.

Features

Performance

• Temperature range from ambient +5°C to +150°C
• Microprocessor PID control with temperature calibration, automatic tuning and automatic run
• Optimal temperature equilibrium achieved by a vane type stirrer with strong circulation power

Convenience

• Easy readout digital LED displays (0.01°C resolution at 0 to +99.9°C / 0.1°C resolution at +100 to +150°C)
• Dual wait on/off timer modes (1min to 99hr 59min)
• Convenient memory function of up to three frequently set temperatures
• Clear visibility provided by double tempered safety glass windows in front and rear sides
• Operations at below or slightly above ambient temperature allowed by stainless steel cooling coil (for operation from +10°C, use an optional cooling circulator)
• Ø 51mm holes (for glass capillary viscometer tubes) and a Ø 12.6mm hole (for a thermometer)

Safety

• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact
• Complete safety protection system with warning alarms – low fluid level and dry-running, over-temperature and over-current
• Keypad lock function prevents accidental changes

Specification

Volume (L):  40

Temperature (°C)

     Range:  Amb. +5 to +150

     Stability:  ±0.1

Dimensions (mm)

     Bath Opening; W x L x D:  295 x 265 x 330

     Cover Lids / Hole for Thermometer:  8ea x 51.0 / 1ea x 12.6

     External; W x D x H:  642 x 374 x 536mm

Weight (Kg):  37

Downloads

Click here for download View File
