£3,699.56

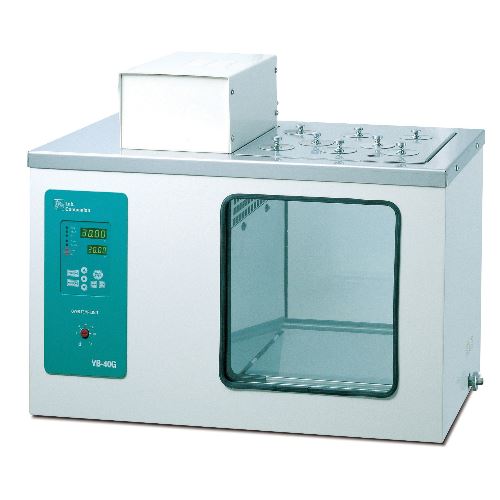

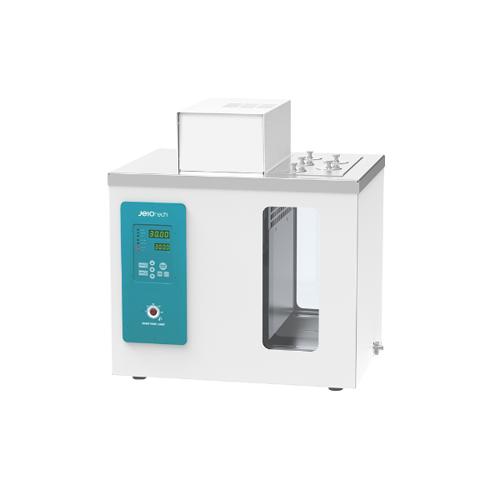

The Jeio Tech VB-25G, 25 Litre Viscosity Bath is a high precision heating bath used for kinematic viscosity measurement, providing ultra temperature control with excellent visibility.
The Jeio Tech VB-25G, 25 Litre Viscosity Bath is a high-precision heating bath used for kinematic viscosity measurement, providing ultra temperature control with excellent visibility. This unit is supplied with an easy-to-read digital LED display, double-tempered safety glass windows, and a baffle plate screen to decrease bath fluid turbulence.
Performance
• Temperature range from ambient +5°C to +150°C
• Microprocessor PID control with temperature calibration, automatic tuning and automatic run
• Optimal temperature equilibrium achieved by a vane type stirrer with strong circulation power
Convenience
• Easy readout digital LED displays (0.01°C resolution at 0 to +99.9°C / 0.1°C resolution at +100 to +150°C)
• Dual wait on/off timer modes (1min to 99hr 59min)
• Convenient memory function of up to three frequently set temperatures
• Clear visibility provided by double tempered safety glass windows in front and rear sides
• Operations at below or slightly above ambient temperature allowed by stainless steel cooling coil (for operation from +10°C, use an optional cooling circulator)
• Ø 51mm holes (for glass capillary viscometer tubes) and a Ø 12.6mm hole (for a thermometer)
Safety
• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact
• Complete safety protection system with warning alarms – low fluid level and dry-running, over-temperature and over-current
• Keypad lock function prevents accidental changes
Volume (L): 25
Temperature (°C)
Range: Amb. +5 to +150
Stability: ±0.05
Dimensions (mm)
Bath Opening; W x L x D: 145 x 265 x 368
Cover Lids/Hole for Thermometer (mm): 5ea x 51.0 and 1ea x 12.6
External; W x D x H: 492 x 374 x 547mm
Weight (Kg): 28
