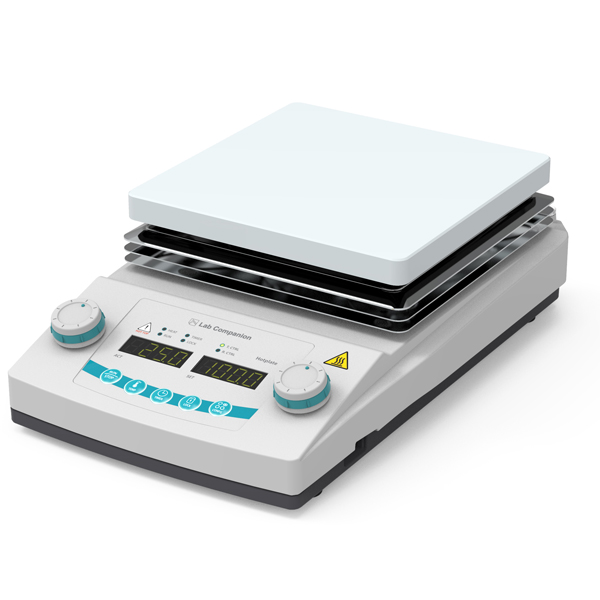

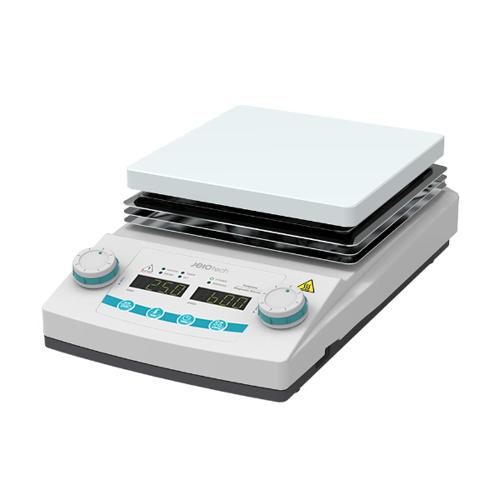

Jeio Tech TS-18QG Advanced Magnetic Hotplate Stirrer

SKU: AAH34485K
BRAND:

£1,151.05

Providing digital heating and stirring control, Jeio Tech’s TS-18QG Advanced Magnetic Hotplate Stirrer comes with various highly advanced features (auto tuning, multi-functional control modes).

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Providing digital heating and stirring control, Jeio Tech’s TS-18QG Advanced Magnetic Hotplate Stirrer comes with various highly advanced features (auto tuning, multi-functional control modes). Supplied with a PT100 temperature probe to control the exact temperature of media in real time, both of which are shown on the digital display.

A smooth-start mechanism guarantees virtually no decoupling of stir bars even with viscous media. A hot top warning indicator, built-in thermal shut off, current limit protection and high and low temperature limit setting are all provided for user convenience and safety.

Features

Easy to control with simple dial knobs for general laboratory heating and stirring applications.

Performance & Convenience

  • Microprocessor PID temperature control
  • Ceramic coated aluminium top plate
  • Feedback control allows constant stirring speed
  • Automatic tuning and temperature calibration with multi-function temperature controls
  • Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability
  • Precise stirring and heating control for reproducible results, even with viscous liquids
  • Advanced dual wait on/off timer modes
  • Included PT100 temperature probe measures the actual temperature of media in real time

Safety

  • Hot top warning indicator, built in thermal shut off, current limit protection
  • High and low temperature limit setting

Specification

Control:  Feedback control with PID
Display:  LED digital
Timer:  1min to 99hr 59min or continuous
Temperature (°C)
     Range:  Max. 350
     Display Resolution:  0.1
Heating Power (W):  800
Speed Range (rpm):  30 to 2000
Stirring Capacity, H2O (L):  20
Plate Dimensions (mm):  180 x 180
Plate Material:  Ceramic coated aluminium
Dimensions; W x D x H (mm):  209 x 326 x 102
Weight (Kg):  3.8
