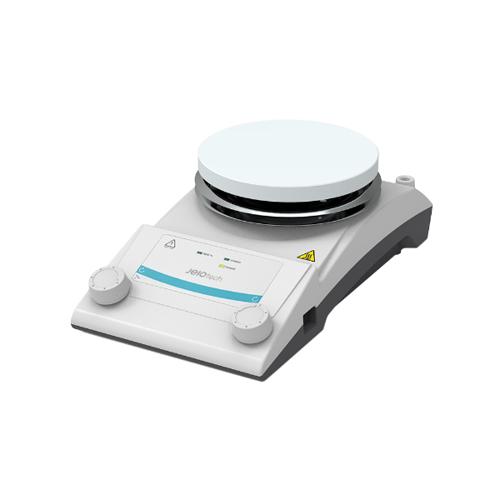

Jeio Tech TM-14SG Basic Magnetic Hotplate Stirrer

SKU: AAH34245K
BRAND:

£645.75

Used for general lab heating and stirring applications, Jeio Tech’s TM-14SG Basic Magnetic Hotplate Stirrer is easy to control and comes with simple dial knobs.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Used for general lab heating and stirring applications, Jeio Tech’s TM-14SG Basic Magnetic Hotplate Stirrer is easy to control and comes with simple dial knobs. Its quick and accurate stirring operation is aided by a BLDC motor and distinctive magnets with very well-built magnetic coupling power. Operations can be immediately stopped with its particularly fast response features. A hot top warning indicator, for preventing accidental injuries, is included as standard.

Features

Performance & Convenience

• Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat-up capability
• Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power
• Instant halt of the stirring operation due to the exceptionally fast response characteristics
• Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media
• Large stirring capacity up to 20 litres H2O
• Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath
• A transparent safety shield protects users from liquid splashes
• Support rod allows for diverse flexibility in configuring other test equipment and accessories (optional)

Safety

• Built-in thermal shutdown and current limit protection
• Hot top warning indicator for preventing accidental injuries

Specification

Temperature (°C)
     Range:  Max. 350
     Display Resolution:  0.1
Display:  Scale
Heating Power (W):  600
Speed Range (rpm):  50 to 2000
Stirring Capacity, H2O (L):  20
Plate Diameter (mm):  140
Plate Material:  Ceramic coated aluminium
Dimensions; W x D x H (mm):  161 x 290 x 100
Weight (Kg):  2.8
