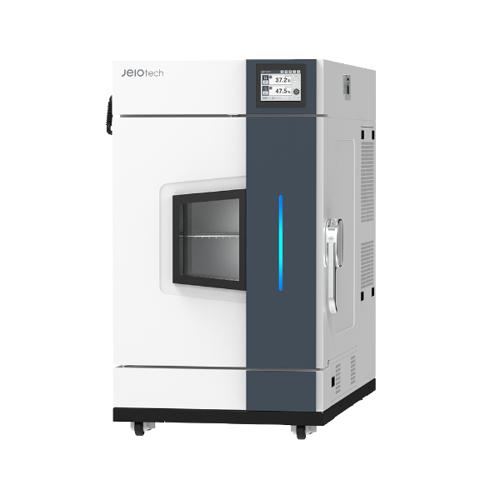

Jeio Tech TH3-PE-065, 65 Litre Bench Top Temperature & Humidity Test Chamber

SKU: AAH822232K
BRAND:

£25,186.93

Jeio Tech’s TH3-PE-065, 65 Litre Bench Top Temperature & Humidity Test Chamber is specially designed to meet extreme temperature requirements and also has strong temperature and humidity control.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Jeio Tech’s TH3-PE-065, 65 Litre Bench Top Temperature & Humidity Test Chamber is specially designed to meet extreme temperature requirements and also has excellent temperature and humidity control.

Standard features include microprocessor PID control, a tempered glass window to clearly observe samples and a colourful, user-friendly, touchscreen LCD controller.

We also have a range of accessories (e.g. perforated shelves) available.

Features

Structural Functional Features

  • Proven reproducibility and reliability with structural design optimised for miniaturisation
  • Compact design for excellent space saving
  • Stable humidity control ability with applying differentiated external humidification system and convenient maintenance for cleaning testing space
  • Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use
  • The door has a double sealing structure and excellent airtightness

User Convenience Features

  • Convenient operation with 140mm colour touchscreen display controller
  • Possible to check the operation status with graphs
  • Water level check function enables water replenishment at the right time
  • Water inlet is easy to use with easy cap
  • Efficient water supply and recirculation system minimises water refilling even for long-term high-humidity tests
  • Operation and status monitoring from the front of the chamber
  • Easy observation of samples with tempered glass door with built in heating wire and LED lamp
  • Display of operation status of the device with LED colours, conveniently and quickly identifies chamber status from a distance
  • The cable port and silicone plug included as standard make it convenient to connect external equipment
  • Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration

Multifunction Control System

  • Storage and documentation of programs
  • Save program information and back up the set values
  • Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port (option)
  • Reliable control with temperature/humidity auto-tuning and temperature calibration
  • PID zone subdivided into 9 zones for more precise control stability
  • Monitor and control via mobile app anytime, anywhere with LC Connected mobile monitoring system (requires optional LC GreenBox)
  • Convenient checking with useful graph display
  • Save data as excel and text files

Specification

Volume (L):  65

Controller:  Programmable, touch-screen controller (140mm colour monitor)

Temperature (°C)

     Range Without Humidity:  0 to +120

     Fluctuation at 25°C / 60%RH:  ±0.3

     Variation at 25°C / 60%RH:  ±0.5

Heating Time Without Humidity (min):  40 from 0°C to +90°C

Cooling Time Without Humidity (min):  35 from +90°C to 0°C

Humidity (% RH)

     Range:  30 to 95

     Fluctuation at 60%RH / 55°C:  ±1

     Variation at 60%RH / 55°C:  ±3

Water Tank

     Capacity (L):  12

     Water Quality:  pH 6.2 to 7.2 / Electrical conductivity <20°C/cm

Shelves

     No. of Wire Shelves (standard/max.):  2/10

     Distance Between Shelves (mm):  20

     Max. Load Per Shelf (Kg):  25

     Permitted Total Load (Kg):  65

Dimensions; W x D x H (mm)

     Internal: 400 x 330 x 495

     External: 600 x 1050 x 1060

Viewing Window (mm): 170 x 229

Weight (Kg):  110

Ports

     Cable Port:  One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.

     Interface Port:  RS-232C (RS-485 optional)

Electrical Requirements (230V, 1P, 50/60Hz):  11.1A
