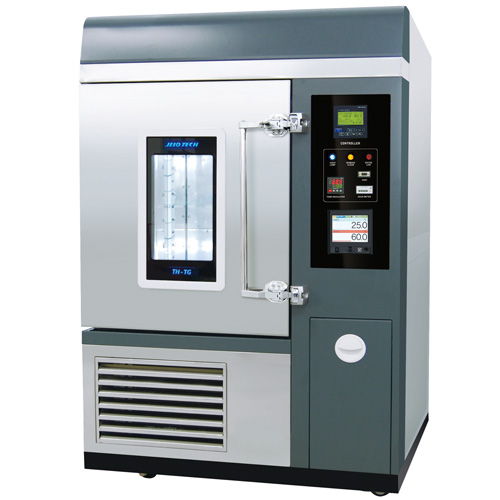

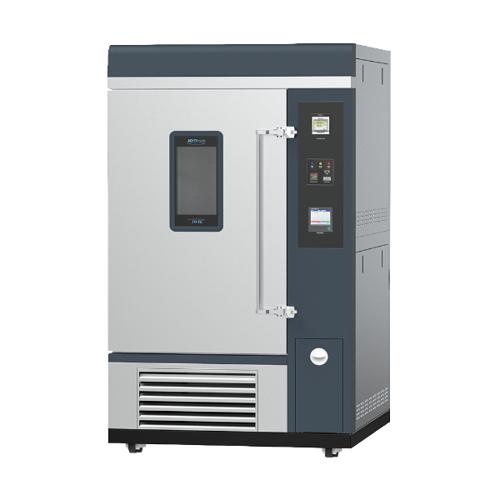

Jeio Tech TH-TG-1000, 997 Litre Floor Standing Temperature & Humidity Test Chamber

SKU: AAHC2042K
BRAND:

£37,234.97

The Jeio Tech TH-TG-1000 Floor-Standing Temperature & Humidity Test Chamber, with a capacity of 997 litres, is an economical environmental test chamber that can be easily operated with its colourful, interactive touchscreen LCD controller.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech TH-TG-1000 Floor-Standing Temperature & Humidity Test Chamber, with a capacity of 997 litres, is an economical environmental test chamber that can be easily operated with its colourful, interactive touchscreen LCD controller.

Features

Performance

  • Microprocessor PID control / Temperature calibration / Automatic tuning
  • Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test
  • Water recycling and filtering system reduce water consumption for longer operation
  • Air-tight door closure

– Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber – Two-point door latch also enhances tightness of door closure

  • Energy efficiency is achieved by optimisation of the insulation system

– Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃

Safety

  • Built in door lock with a key
  • Automatic shut off after over-heat alarm
  • Low and empty water level alarm
  • Power supply leakage breaker
  • Over-current protection
  • Open door alarm

Specification

Volume (L):  997

Controller:  Programmable, touch-screen controller (140mm colour monitor)

Temperature (°C)

     Range Without Humidity:  -5 to +100

     Range With Humidity:  +20 to +90

     Fluctuation at 40°C / 60%RH:  ±0.3

     Variation at 40°C / 60%RH:  ±0.5

Heating Time Without Humidity (min):  55 from -5 to +100°C

Cooling Time Without Humidity (min):  145 from +100 to -5°C

Humidity (%RH)

     Range:  20 to 95

     Fluctuation at 60%RH / 40°C:  ±2

     Variation at 60%RH / 40°C:  ±3

Refrigeration

     System:  Air-cooled

     Refrigerant:  R-507A

Water Tank

     Capacity (L):  15

     Water Quality:  pH 6.2 – 7.2 / Electrical conductivity <20µs/cm

Shelves

     No. of Wire Shelves (standard/max.):  2/17

     Distance Between Shelves (mm):  60

     Max. Load Per Shelf (Kg):  40

     Permitted Total Load (Kg):  100

Dimensions; W x D x H (mm)

     Internal:  748 x 1190 x 1120

     External:  1201 x 1498 x 1993

Viewing Window (mm):  200 x 330

Weight (Kg):  410

Ports

     Cable Port:  One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.

     Interface Port:  RS-232C (RS-485 optional)

Electrical Requirements (230V, 1ph, 50/60Hz):  15.4A
