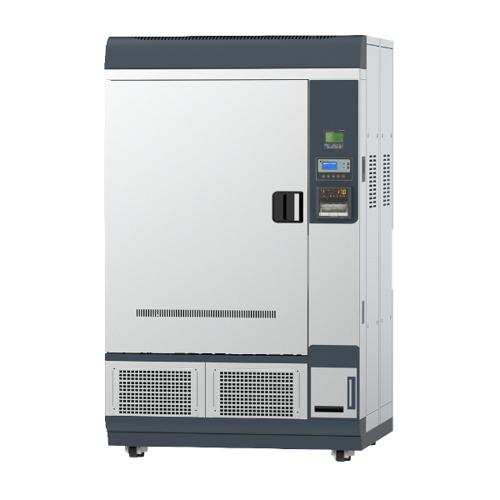

Jeio Tech TH-ICH-800, 760 Litre Pharmaceutical Stability Test Chamber

SKU: AAHC1012K
BRAND:

£34,874.71

The Jeio Tech TH-ICH-800 Pharmaceutical Stability Test Chamber, with a capacity of 760 litres, contains a fine temperature and humidity control system suitable for carrying out long-term stability tests and an independent luminescence control system for photostability tests.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech TH-ICH-800 Pharmaceutical Stability Test Chamber, with a capacity of 760 litres, contains a fine temperature and humidity control system suitable for carrying out long-term stability tests and an independent luminescence control system for photostability tests. Its fast humidity control is accomplished by making the humidification tank central to the chamber.

The operating process for stability tests can be seen through the test chamber’s graph mode for enhanced data examination. For photostability tests, this test chamber comes with a built-in UV and fluorescent lamp for aligned luminescence.

Features

Features

  • In the event of a validation the apparatus correctly controls each light and then transfers accurate data and is equipped with light sensors
  • Samples that have to be exposed to the light in which it is completely near the UV energy of less than 200W-hr/m2 is provided to compare directly with the results from overall intensity of less than 1.20 million lux-hr, drug substances and reagents
  • Total fluorescent lamp and UV lamp indicator and operating time indicator

Safety

  • Leakage breaker for power supply
  • Over-current protection
  • Over-heat protection
  • Switch-off after alarm for overheating
  • Door open alarm
  • Water empty alarm
  • Vice type door locking mechanism (optional)
  • Alarm for completed photostability test

Specification

Volume (L):  760

Controller:  PID control (LCD type)

Temperature (°C)

     Range Without Humidity:  -5 to +85°C without light and 0 to +85°C with light

     Range With Humidity:  +15 to +85°C with light

     Fluctuation at 40°C / 60%RH:  ±0.3

     Variation at 40°C / 60%RH:  ±0.7

Heating Time Without Humidity (min):  30 from +20°C to +85°C

Cooling Time Without Humidity (min):  40 from +20°C to +5°C

Humidity (%RH)

     Range:  20 to 85

     Fluctuation at 60%RH / 40°C:  ±3

     Variation at 60%RH / 40°C:  ±5

Light Source (ICH Q1B Option 2)

     Cool White:  6500 lux

     Ultraviolet-A:  5 W/m2

     Light Uniformity:  VIS: ±15% and UVA: ±15%

Typical Time Required to Reach ICH Recommendation of 1.2 Million lux – hr:  184hr

Typical Time Required to Reach ICH Recommendation of 200 W-hr/m2:  40hr

Refrigeration

     System:  Air-cooled

     Refrigerant:  R-404A

Water Tank

     Capacity (L):  15

     Water Quality:  pH 6.2 – 7.2 / Electrical conductivity <20µs/cm

Shelves

     No. of Wire Shelves (standard/max.):  2/17

     Distance Between Shelves (mm):   60

     Max. Load Per Shelf (Kg):  40

     Permitted Total Load (Kg):  100

Dimensions; W x D x H (mm)

     Internal:  750 x 880 x 1160

     External:  1220 x 1215 x 1965

Weight (Kg):  400

Ports

     Cable Port:  One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.

     Interface Port:  RS-232C (RS-485 optional)

Electrical Requirements (230V, 1ph, 50/60Hz):  24.5A
