Jeio Tech TH-G-1000, 1000 Litre Floor Standing Temperature & Humidity Test Chamber

SKU: AAH80052K
BRAND:

£50,230.03

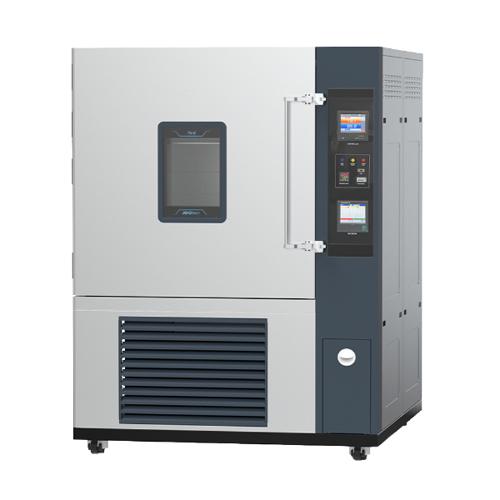

With its high-quality 304 grade stainless exterior and interior, the Jeio Tech TH-G-1000, 1000 Litre Floor Standing Temperature & Humidity Test Chamber is a safe and reliable tool that can be used to test the effects of detailed environmental surroundings on biological and industrial products and various other materials.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

With its high-quality 304 grade stainless exterior and interior, the Jeio Tech TH-G-1000, 1000 Litre Floor Standing Temperature & Humidity Test Chamber is a safe and reliable tool that can be used to test the effects of detailed environmental surroundings on biological and industrial products and various other materials.

Features

Performance

  • Microprocessor PID control / Temperature calibration / Automatic tuning
  • Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test
  • Water recycling and filtering system reduce water consumption for longer operation
  • Air-tight door closure

– Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber – Two-point door latch also enhances tightness of door closure

  • Energy efficiency is achieved by optimisation of the insulation system

– Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃

Safety

  • Built in door lock with a key
  • Automatic shut off after over-heat alarm
  • Low and empty water level alarm
  • Power supply leakage breaker
  • Over-current protection
  • Open door alarm

Specification

Volume (L):  1000

Controller:  Programmable, touch-screen controller (140mm colour monitor)

Temperature (°C)

     Range (without humidity):  -40 to +150

     Range (with humidity):  +15 to +90

     Fluctuation at 40°C / 75%RH:  ±0.3

     Variation at 40°C / 75%RH:  ±0.5

Heating Time Without Humidity (min):  70 from -40°C to +120°C

Humidity (%RH)

     Range:  25 to 95

     Fluctuation at 75%RH / 40°C:  ±1.0

     Variation at 75%RH / 40°C:  ±3

Refrigeration

     System:  Mechanical dual stage refrigerator system

     Refrigerant:  R-507

Water Tank

     Capacity (L):  15 – cartridge type

     Water Quality:  pH 6.2 to 7.2 / Electrical conductivity <20µs/cm

Shelves

     No. of Wire Shelves (standard/max.):  2/14

     Distance of Between Shelves (mm):  40

     Max. Load Per Shelf (Kg):  40

     Permitted Total Load (Kg):  100

Dimensions; W x D x H (mm)

     Internal:  1000 x 1000 x 1000

     External:  1503 x 1519 x 1968

Viewing Window (mm):  270 x 330

Weight (kg):  680

Ports

     Cable Port:  One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.

     Interface Port:  RS-232C (RS-485 optional)
