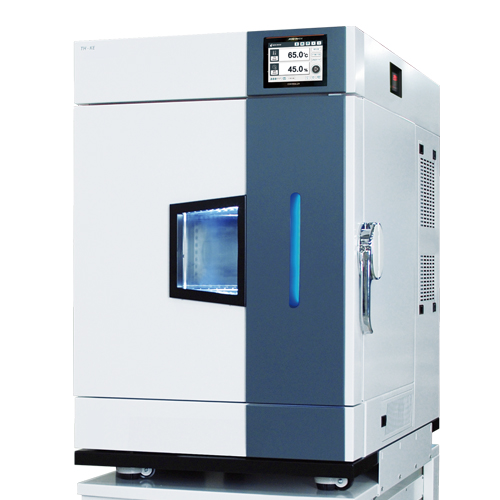

Jeio Tech TC3-KE-065, 65 Litre Bench Top Temperature Test Chamber

SKU: AAH861232K
BRAND:

£20,000.00

The Jeio Tech TC3-KE-065, 65 Litre Bench Top Temperature Test Chamber is an ideal size for small areas or when the product to be tested is relatively small.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech TC3-KE-065, 65 Litre Bench Top Temperature Test Chamber is specially designed to meet extreme temperature requirements with excellent temperature control.

Standard features include microprocessor PID control, a tempered glass window to clearly observe samples and a colourful, user-friendly, touchscreen LCD controller.

We also have a range of accessories (e.g. perforated shelves) available.

Features

Structural Functional Features

  • Proven reproducibility and reliability with structural design optimised for miniaturisation
  • Compact design for excellent space saving
  • Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use
  • The door has a double sealing structure and excellent airtightness

User Convenience Features

  • Convenient operation with 140mm colour touch display controller
  • Easy observation of samples with tempered glass door with built in heating wire and LED lamp
  • Display of operation status of the device with LED colours, conveniently and quickly identifies chamber status from a distance
  • The cable port (ø 50mm) included as standard make it convenient to connect external equipment
  • The door structure can be easily opened or closed
  • Door handle with built-in key lock
  • Identification of the control and operating conditions at the front of the product
  • Stainless steel internal chamber made provides easy maintenance and excellent corrosion resistance
  • Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration
  • Equipped with easy-to-move/install casters

Multifunction Control System

  • Highly-reliable control through calibration
  • Auto-tuning by subdivided PID zone for more precise control stability
  • Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port (option)
  • Convenient checking with useful graph display

Specification

Volume (L):  65

Controller:  Programmable, touch-screen controller (140mm colour monitor)

Temperature (°C)

     Range:  -40 to +150

     Fluctuation at 100°C:  ±0.3

     Variation at 100°C:  ±0.5

Heating Time (min):  60 from -40°C to +100°C

Cooling Time (min):  70 from +20°C to -40°C

Refrigeration

     System:  Mechanical single stage refrigerator system (air-cooled condenser)

     Refrigerant:  R-507A

Shelves

     No. of Wire Shelves (standard/max.):  2/10

     Distance Between Shelves (mm):  20

     Max. Load Per Shelf (Kg):  25

     Permitted Total Load (Kg):  65

Dimensions; W x D x H (mm)

     Internal:  400 x 330 x 495

     External:  600 x 1050 x 1060

Viewing Window (mm):  170 x 229

Weight (Kg):  110

Ports

     Cable Port:  One Ø 50mm hole is provided. In addition, it is possible to order one additional Ø 50mm or Ø 80mm hole

     Interface Port:  RS-232C (RS-485 optional)
