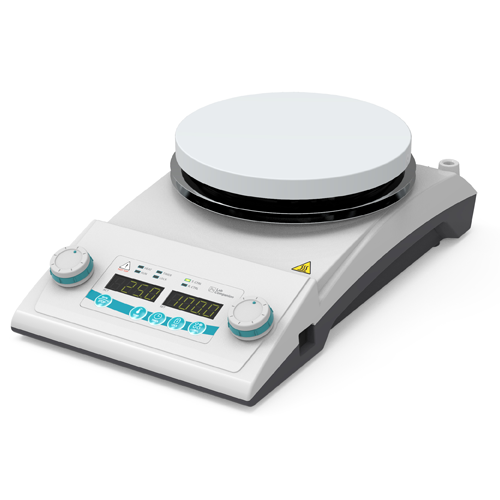

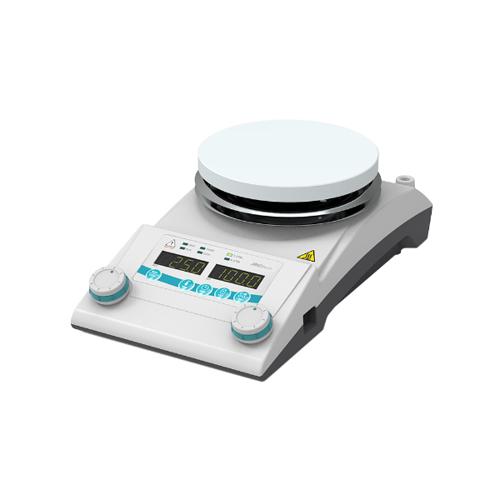

Jeio Tech T-14SG Hotplate

SKU: AAH35045K
BRAND:

£659.72

Jeio Tech’s T-14SG Hotplate provides superior temperature control and comes with a variety of safety features (e.g. high and low temperature limit setting).

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Jeio Tech’s T-14SG Hotplate provides superior temperature control and comes with a variety of safety features (e.g. high and low temperature limit setting).

With its integrated design, this scientific hotplate delivers an excellent heat transfer rate and quick heat-up capability. The selective heating level can be allocated from 0 to 100%, and the exact temperature is applied on the hotplate’s digital display.

Features

Superior temperature control with various safety functions and a ceramic coated, aluminium top plate.

Performance & Convenience

  • Microprocessor PID temperature control
  • Auto-tuning and temperature calibration functions
  • Multi-functional temperature control modes
  • Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability
  • Precise temperature is set by digital LED display
  • Advanced dual wait on/off timer modes
  • Separate operation RUN/STOP button

Safety

  • Built-in thermal shut off and current limit protection
  • High and low temperature limiter
  • Hot top warning indicator
  • Keypad lock function
  • Transparent safety shield (optional)

Specification

Heating

     Temperature Range (°C):  Max. 350

     Control:  Feedback control with PID

     Display:  LED digital (0.1°C resolution)

     Heating Power (W):  600

Safety

     Hot Top Indicator:  Warning Lamp (@ 50°C)

     Over Temperature:  Top plate/main body/PCB

     Over Current:  Current limit protection

Top Plate

     Shape:  Round

     Material:  Ceramic coated aluminium

     Dimensions; Ø (mm):  140

Timer:  1min to 99hr 59min

Max. Load (Kg):  25

Dimensions; W x D x H (mm):  161 x 290 x 100

Weight (Kg):  2.2

Downloads

Click here for download View File
