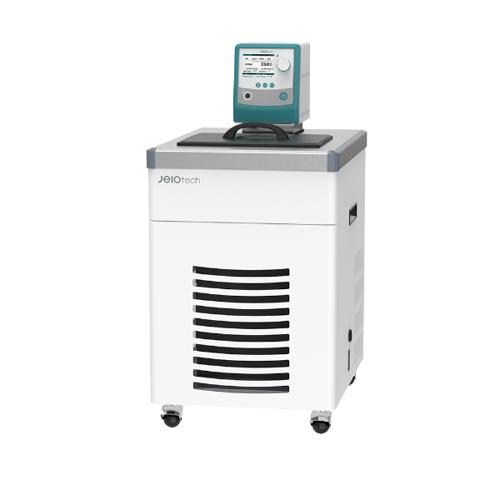

Jeio Tech RW3-2035P, 20 Litre Refrigerating & Heating Bath Circulator

SKU: AAH57762K
BRAND:

£5,791.43

The Jeio Tech RW3-2035P Refrigerating & Heating Bath Circulator, with a capacity of 20 litres, provides rapid heating and cooling throughout its entire temperature range.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech RW3-2035P Refrigerating & Heating Bath Circulator, with a capacity of 20 litres, provides rapid heating and cooling throughout its entire temperature range.

Its seamless, round-cornered stainless steel tank with an accessible drain valve can be easily cleaned and ensure stability. With an optimum refrigeration system, samples and applications can be cooled quickly.

We also have a wide range of accessories available.

Features

Performance

  • Microprocessor PID control
  • Three point temperature calibration / automatic tuning / automatic run
  • Suitable for both internal and external bath environments due to reduced turbulence by using five-speed adjustable pump and built-in cooling coil

Convenience

  • Intuitive touch screen LCD controller with easy icons and logical menus
  • Dual wait On / Off timer modes (1min to 99hr 59min)
  • Digital input and output control function for interlocking external devices RS-232 interface for external control and data collection
  • High quality, corrosion resistant, 304 grade stainless steel bath with rounded corners which is easy to clean, with front access drain valve
  • Quick release front grill and detachable condenser air-filter for easy maintenance
  • Use of CFC-free refrigerant (R-507, R-404A) and a double service valve for leak prevention
  • Built-in casters and side handles for easy transport and installation

Safety

  • Isolated design of agitator, heater and sensor by a baffle plate, minimising the turbulence in the bath fluid and also protecting users and samples against direct contact
  • Complete safety protection system with warning alarms; low fluid level and dry-running, over-temperature, over-current
  • Splash-proof keypad and keypad lock function prevents accidental changes during operation

Specification

Volume (L):  20

Temperature (°C)

     Range:  -35 to +150

     Accuracy:  ±0.05

Cooling Capacity (W)

     At -20°C:  310

     At 0°C:  610

     At +20°C:  850

Pump

     Pressure (PSI):  5.9

     Max. Flow Rate (l/min):  28

Dimensions; W x D x H (mm):  386 x 602 x 825

Weight (Kg):  60

Downloads

Click here for download View File
