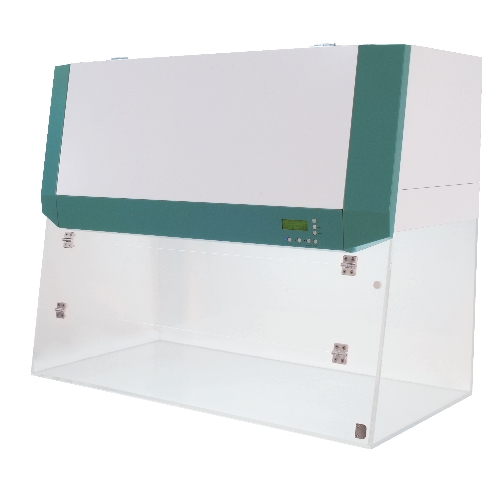

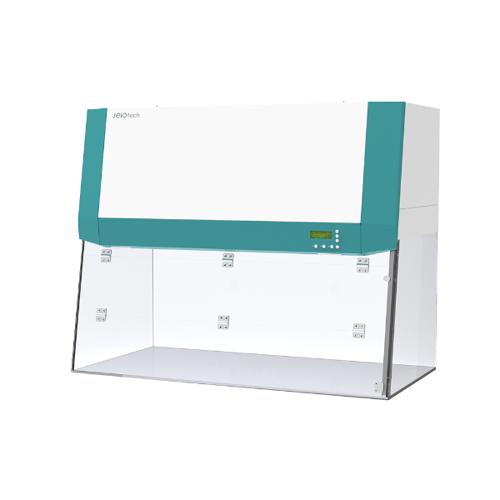

The Jeio Tech PW-21 PCR Workstation with HEPA Filtration and UV Sterilisation is specially designed to minimise sample contamination during PCR applications by combining an ISO Class 4 clean air environment with UV sterilisation.
The Jeio Tech PW-21 PCR Workstation with HEPA Filtration and UV Sterilisation is specially designed to minimise sample contamination during PCR applications by combining an ISO Class 4 clean air environment with UV sterilisation.
It is equipped with a user-friendly microprocessor-based control panel, easily set digital timer for UV light exposure to deactivate DNA and RNA contaminants, and a built-in anti-glare fluorescent lamp to minimise shadows and relieve eye strain.
Performance
• ISO Class 4 (US Class 10) HEPA filter for optimal protection against cross-contamination (average life span of HEPA filter is 3 years depending on the test room conditions)
• High-quality polyester fibre pre-filter for trapping larger particles and increasing the life of the main HEPA filter
• Effective sterilisation using a long-life 254mm UV lamp (average life span of UV lamp is 8000 hours)
• Built-in anti-glare fluorescent lamp minimises shadows and relieves eye strain
Convenience
• User-friendly microprocessor-based control panel
• Large capacity blower and easy blower speed adjustment by the control panel
• Easy-settable digital timer for UV light exposure to deactivate DNA and RNA contaminants (wait off, max. 30min)
• Comfortable front access to cartridge type of filters for easy replacement
Safety
• Interlocking safety door system shuts off UV light automatically when opening the door
• UV-blocking door and side panels made of transparent acrylic resin provides clear inside view
• UV over-exposure alarm and over-current protection
Air Flow
Type: Vertical Laminar Flow
Velocity (m/s): 0.3
Filters
Air Cleaniness: ISO 14644-1 Class 4
HEPA Filter: Typical efficiency of 99.99% at 0.3µm US MIL-STD-282; Micro glass fibre media, particle board, aluminium seperator, neoprene gaskets
Pre Filter: Polyester fibres with an efficiency of 85% (A.F.I. Test); AL frame, polyester fibre media
Noise Level (dB): Typically <60
Construction
Work Surface: 10mm thick acrylic resin
Window (front/side, back): 8mm/10mm thick acrylic resin
Illumination
Fluorescent Lamp (lux): >1000
UV Density (µW/cm2): 330
Dimensions; W x D x H (mm)
Internal: 1180 x 585 x 602
External: 1200 x 605 x 964
Weight (Kg): 77.8
