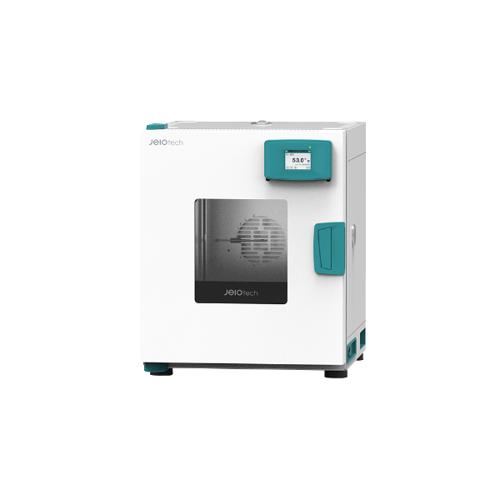

Jeio Tech OF4-05S 61 Litre Standard Forced Convection Oven

SKU: AAH14125K
BRAND:

£2,453.44

The Jeio Tech OF4-05S, 61 Litre Standard Forced Convection Oven is an affordable, multi-functional fast drying laboratory oven with horizontal airflow.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech OF4-05S, 61 Litre Standard Forced Convection Oven is corrosion resistant and has adjustable dual slide vents to adjust amount of air to be exhausted. Other features include microprocessor PID control and intuitive 3.5-inch touch screen.

Solid door. Also available with window door, please enquire for ordering information.

Features

Performance

• Temperature range from ambient +10°C to +250°C
• Three-point temperature calibration that ensures high temperature accuracy over a wide temperature range
• Microprocessor PID control and automatic tuning
• Forced air convection generated by a circular fan provides high and uniform drying performance
• Adjustable dual slide vents to adjust amount of air to be exhausted

Convenience

• Intuitive 3.5-Inch colour touch controller
• Wait on/off timer modes (up to 99hr 59min) for efficient scheduling
• Records 12 most recent events, such as start/stop of operation, the operating time, and error occurrence
• Corrosion-resistant incoloy sheath heating element and stainless steel interior
• Hands-free door system to allow users to easily open the door while carrying samples with both hands
• Optional communications port: RS-232/USB port and compatible software to enable easy device control and data management using PC
• Optional mobile monitoring system: Monitor and control via mobile app anytime, anywhere with LC Connected
• Optional BMS port: Monitor the device temperature on the building management system

Safety

• Controller lock function prevents accidental changes during operation
• Automatic run after power interruption
• Ability to set the upper and lower temperature limit
• Over-temperature and over-current protection
• Audible and visible open door alarms

Specification

Volume (L): 61
Temperature (°C)
Range: Amb. +10 to +250
Fluctuation at 100°C: ±0.3
Variation at 100°C: ±1.9
Dimensions; W x D x H (mm)
Internal: 380 x 330 x 480
External: 558 x 648 x 684
No. of Wire Shelves (standard/max.): 2/5
Weight (Kg): 53

Ask a Question

Jeio Tech OF4-05S 61 Litre Standard Forced Convection Oven

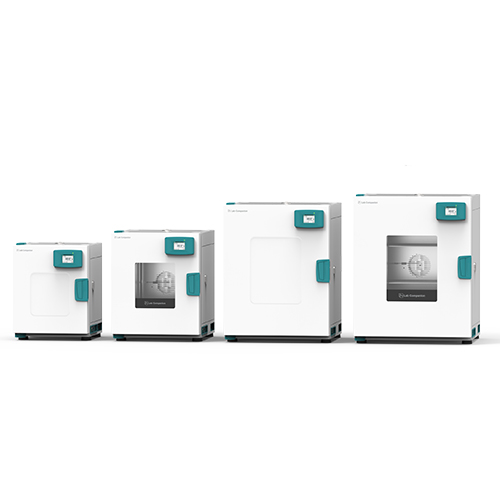

JeioTech laboratory ovens
