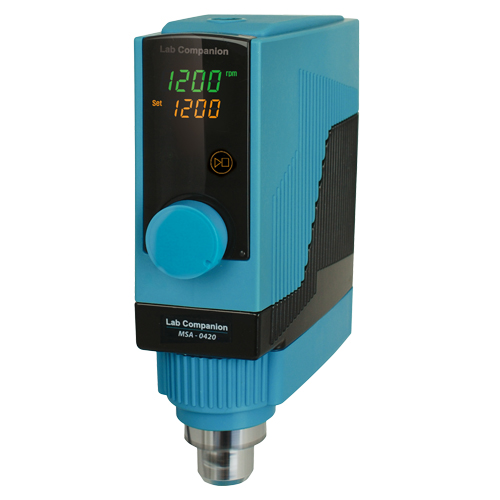

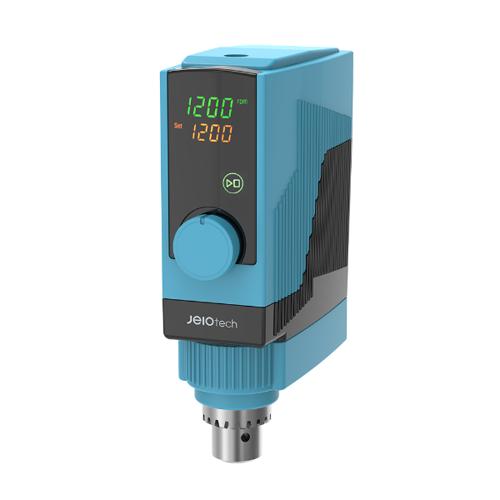

Jeio Tech MSA-0420 Analogue Overhead Stirrer

SKU: AAH373325K
BRAND:

£556.97

Jeio Tech’s MSA-0420 Analogue Overhead Stirrer offers powerful stirring and can be easily operated with its sustainable economical benefits.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Jeio Tech’s MSA-0420 Analogue Overhead Stirrer offers powerful stirring and can be easily operated with its sustainable economical benefits.

It comes with a maintenance-free BLDC motor to generate steady, silent, but highly effective stirring. Accidental spills or splashes can be prevented with the use of its microprocessor’s gently controlled start and stop functions.

Features

Performance & Convenience

  • Equipped with a maintenance-free BLDC motor to generate smooth, quiet and powerful stirring
  • Powerful torque capable of handling high viscosity tasks
  • Illuminated digital display panel with sensitive touch buttons – set/present rpm, power ratio (%) and run time are visible together on one screen
Safety
  • Sturdy aluminium main body efficiently absorbs and dissipates the heat generated by the motor
  • Safety features against overload and overheating for continuous operation

Specification

Stirring System

     Speed Control/Type:  PID feedback control / analogue

     Speed Range (rpm):  80 to 2000

     Chuck Diameter (mm):  3 to 10

     Max. Stirring Capacity, H2O (L):  20

     Stirring Direction:  Clockwise

     Max. Viscosity (cP):  5000 @ 2000rpm, 10,000 @ 1200rpm, 30,000 @ 300rpm, 50,000 @ 200rpm

     Max. Torque (N-cm):  19

     Motor Rating Input/Output (W):  70/40

Construction

     Body: Powder Coated Aluminium

     Cover:  Polypropylene

     Motor:  BLDC

Dimensions; W x D x H (mm):  75 x 215 x 150

Weight (Kg):  2.8

Protection Class (DIN EN 60529):  IP30
