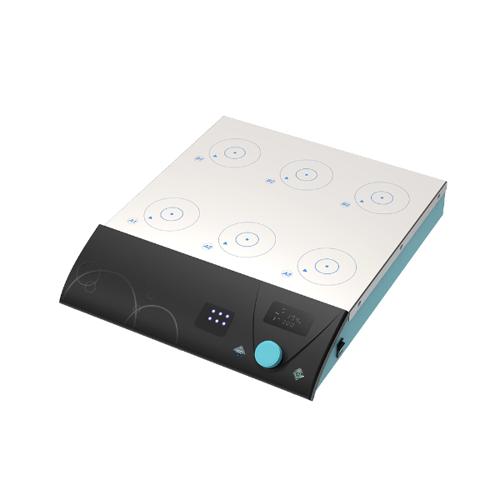

Jeio Tech MS-23M Multi-Position Magnetic Stirrer

SKU: AAH332115K
BRAND:

£1,141.47 £595.00

The Jeio Tech MS-23M Multi-Position Magnetic Stirrer features powerful magnets and motors that are guaranteed to deliver high-speed and effective coupling to the magnetic stirrer bars.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech MS-23M Multi-Position Magnetic Stirrer features powerful magnets and motors that are guaranteed to deliver high-speed and effective coupling to the magnetic stirrer bars. This stirrer offers excellent stirring capabilities, providing constant and reliable stirring of liquid samples. It also has digital PID feedback control, which manages a consistent stirrer speed and avoids any motor wear.

The top plate is constructed of chemically resistant 304 grade stainless steel. The intuitive, easy-to-read VFD control panel also features bright and vivid LED position indicating lamps for your convenience. There are multiple speed and time setting modes, allowing various ways of multi-position stirring to meet users’ demands – single point, multiple point, whole row, whole column etc.

Features

Performance & Convenience

  • Ergonomic design, lightweight, easy to operate and low profile
  • Spark-free, silent and durable BLDC motor
  • Two non-slip silicone plate covers (white & black)
  • Non-slip rubber feet
  • Strong magnetic coupling to ensure constant stirring
  • Digital PID feedback control for every single point, separately
  • User-friendly operation and time setting modes single point, multiple point, whole row, whole column, etc.
  • Easy-to-read VFD and intuitive control panel
  • Non-slip see-through silicone plate mat (optional)
  • Chemically resistant grade stainless steel top plate

Safety

  • Designed to protect internal components from accidental spills
  • Built-in thermal shut down and current limit protection
  • Protection class IP21 (DIN EN 60529)

Specification

Stirring System

     Stirring Positions:  6

     Speed Range (rpm):  30 to 2000

     Stirring Point Distance; W x D (mm):  117 x 170

     Timer:  1min to 99hr 59min

     Display Panel:  VFD & LED

     Max. Load (Kg):  30

Dimensions; W x D x H (mm):  377 x 484 x 81

Weight (Kg):  6
