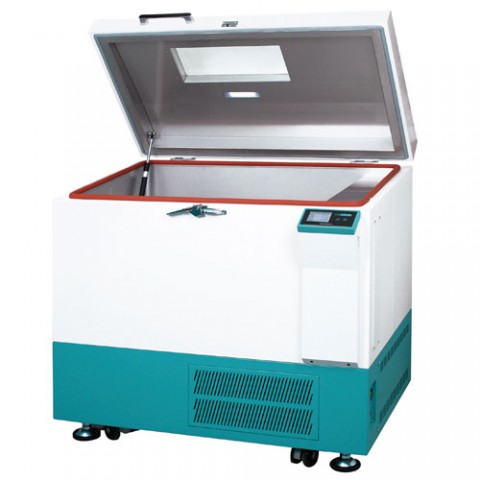

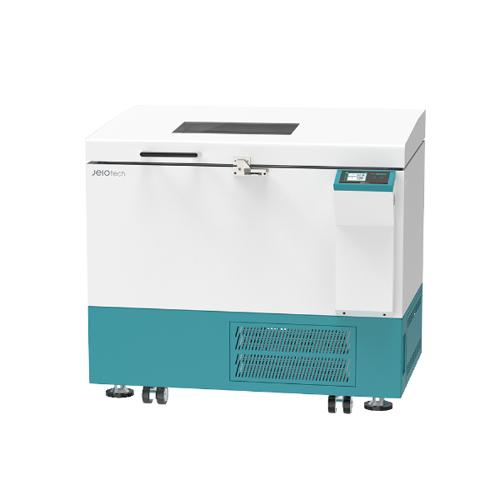

Jeio Tech ISF-7100 Floor Standing Incubator Shaker

SKU: AAH23342K
BRAND:

£9,982.25

The Jeio Tech ISF-7100 Floor Standing Incubator Shaker can hold up to five 6 litre flasks and carry out heavy workload whilst delivering an excellent temperature performance.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Jeio Tech ISF-7100 Floor Standing Incubator Shaker can hold up to five 6 litre flasks and carry out heavy workload whilst delivering an excellent temperature performance. It comes with an exclusive drive mechanism. With its ergonomic design, this floor standing shaking incubator can deliver years of trouble-free service.

Please note: No platform is supplied with this shaker. A Universal Platform or Universal Attachment must be purchased to allow the shaker to be used. We also have a wide range of accessories available – please contact us for details.

Features

Performance

• Temperature range from ambient +5°C to +80°C
• Competitive high shaking speed up to 500rpm
• Orbital shaking motion in various diameter
• Microprocessor PID control
• Three point temperature calibration/automatic tuning
• Wide speed range even with heavy workload. Equipped with DD (Direct Drive) brushless motor and triple cam system to support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation
• Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity. Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock
• Pleasant test environment by the smooth acceleration and deceleration control. Smooth start and stop function prevents chemical spills from flasks or test tubes
• High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door is opened
• Air-tight silicone door seal with lockable door for safe storage of samples

Convenience

• Intuitive touch-screen LCD controller with easy icons and logical menus
• Easy-set digital timer for shaking operation (1min to 999hr 59min)
• Easy sample monitoring and convenient sample loading. Clear observation of samples without affecting inner chamber’s environments thanks to the transparent top viewing window with bright LED lamps. The lid is inclined gently towards the front for easy observation of samples in the chamber. Gas spring lid supports providing smooth motion, soft opening and closing
• Repetitive tasks can be easily performed as the platform stops in the same position where it starts. Stopping the shaking platform always at the same position is highly beneficial for automated closing or sampling process
• Corrosion resistance stainless steel interior
• Easy-access drain system with a quick disconnect valve offers great convenience to clean-up spills
• Built-in RS-232 port and USB port for external control and data collection
• Sturdy foot caster, beneficial for easy mobility during installation or relocation

Safety

• Automatic run after power interruption
• Temperature and shaking speed deviation alarm
• Over-current protection
• Triple independent temperature monitor system (temperature deviation alarm – high/low, electronic temperature limiter – high/low, and mechanical over-temperature limiter (high)
• Audible and visible open door alarms

Specification

Temperature (°C)

     Range:  Amb. +5 to +80

     Fluctuation at 37°C in Flask:  ±0.1

     Variation at 37°C in Flask:  ±0.5

Shaking System

     Motion Type:  Orbital

     Orbit Diameter (mm):  25.4

     Speed Range (rpm):  30 to 500

     Accuracy:  ±1% of set speed (≥100rpm) / ±1 (≤100rpm)

     Timer:  1min to 999hr 59min

     Max. Load (Kg):  15 at 500 rpm, 25 at 400 rpm and 35 at 300rpm

Dimensions (mm)

     Platform; W x D:  755 x 520

     Internal; W x D x H:  894 x 634 x 480

     External; W x D x H:  1128 x 854 x 1035

Weight (Kg):  277
