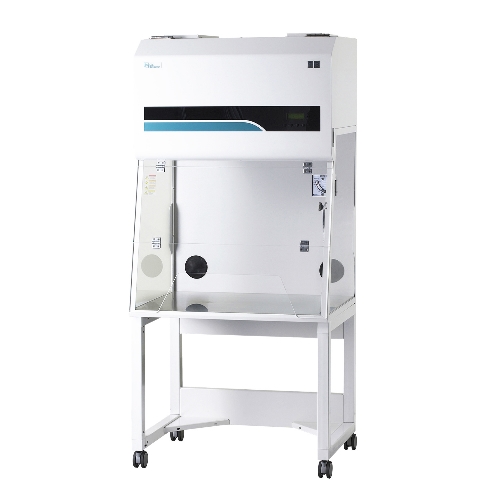

Jeio Tech DLH-11G Ductless Fume Hood

SKU: AAHB2012K
BRAND:

£7,496.84

Jeio Tech’s DLH-11G Ductless Fume Hood provides laboratories with a safe and energy saving mobile workspace, free from toxic vapours and fumes without the need for costly ductwork.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Jeio Tech’s DLH-11G Ductless Fume Hood provides laboratories with a safe and energy saving mobile workspace, free from toxic vapours and fumes without the need for costly ductwork.

It comes with a high-quality polyester fibre pre-filter for trapping larger particles and increasing the life of the main HEPA filter. The large-capacity blower maintains a sufficient intake flow rate and reduces noise (less than 50dB under normal operation).

This ductless fume hood’s internal airflow speed can also be easily monitored with the built-in anemometer.

Additional information

Pack Size

1

Features

Performance

• A variety of filters and work surfaces available to suit your experimental needs
• High-quality polyester fibre pre-filter for trapping large particles and increasing the life of the main HEPA filter
• Large-capacity blower maintaining sufficient intake flow rate and reducing noise (less than 55dB under normal operation)
• Fluorescent light installed outside the workspace in order to prevent the airflow hindrance as well as the contamination while maintaining illumination intensity

Convenience

• Easy monitoring of the internal airflow speed thanks to built-in anemometer
• Comfortable front access to cartridge type of filters for easy replacement
• Built-in utility hole for easily routing the cords or wires of the equipment placed inside the hood
• Fully or half openable front door for convenient transport of experimental apparatuses and equipment into or out of the workspace

Standards Compliance

• Efficiency and capacity of activated carbon filters: BS 7989:2001
• Structure, electrical outlet, lighting, and sound level: BS 7258-1:1994
• Local smoke, large volume visualisation, face velocity, and tracer gas: ANSI/ASHRAE 110-1995 and NF EN 14175-1

Specification

Fume Hood Type:  Ductless

Permissible Environmental Condition:  Temperature: 5 to 40°C, Maximum Relative Humidity: 80%, Altitude up to 2000m

Controller:  Microprocessor control

Face Velocity:  0.4m/s

Air Flow Meter:  Swing vane type

Filters

     Main Filter:  Chemical Filter (optional 6 different filters)

     Pre Filter:  Washable high efficiency nylon filter

Construction

     Hood and Window (front/side):  2mm steel (epoxy powder-coated), 8mm/6mm thick acrylic resin

     Work Surface:  Optional 6 different work surfaces

Fluorescent Light Intensity:  >600 lux

Noise Level (dB):  <55 (under normal operation)

Dimensions; W x D x H (mm)

     Internal:  1180 x 640 x 800

     External – without stand:  1200 x 660 x 1250

     External – with stand:  1200 x 660 x 1985

Weight (Kg)

     Hood:  118

     Hood and Stand:  140

Downloads

Click here for download View File
