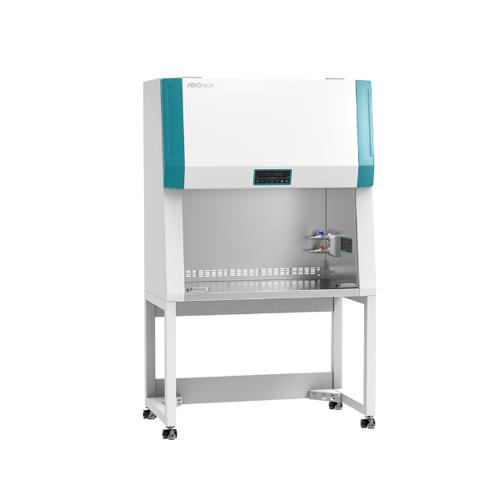

Jeio Tech BC-01H Vertical Laminar Flow Cabinet – Digital Control

SKU: AAHA5012K
BRAND:

£4,536.31

With its vertical laminar air flow, the Jeio Tech BC-01H Vertical Laminar Flow Cabinet – Digital Control comes with advanced digital controls and a variety of convenient features. High efficiency HEPA filter, for particles from 0.3 microns. Nominal downflow velocity of 0.3m/s (60fpm). Ergonomic 5 degree slope at front for maximum user comfort.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

With its vertical laminar air flow, the Jeio Tech BC-01H Vertical Laminar Flow Cabinet – Digital Control comes with advanced digital controls and a variety of convenient features. High efficiency HEPA filter, for particles from 0.3 microns. Nominal downflow velocity of 0.3m/s. Ergonomic 5 degree slope at front for maximum user comfort. It also comes with an ISO Class 4 (US Class 10) HEPA filter, the air from which minimises cross contamination in the work space and provides an abrasive-free working environment. Suitable for a variety of test applications such as plant tissue culture research and syringe filling.

Please Note: Vertical Laminar Flow Cabinets offer product protection ONLY! If you require product AND user protection you should choose a Biological Safety Cabinet (Class II Cabinet)

Additional information

Pack Size

1

Features

Performance

• ISO Class 4 (US Class 10) HEPA filter for optimal protection against cross-contamination
• 0.3µm and larger particulates are removed with 99.9% efficiency, leak-tight HEPA filter which satisfies Class 10 (US Federal Standard 209E). The average life span of the HEPA filter is 3 years depending on the test room conditions)
• High-quality polyester fibre per filter for trapping larger particles and increasing the life of the main HEPA filter
• Digital airflow rate sensor (microprocessor) for automated airflow speed control. Offters continual airflow speed of same velocity and extends the HEPA filter life span.
• Exclusive diffusing muffler structure forms high-quality laminar flow
• Quiet and comfortable working environment (less than 65dB)

Convenience:

• Interlocking smart door system. Simply open the door while UV lamp is on. Interlocking smart door system will automatically turn off UV lamp, turn on fluorescent lamp and blower instead of your manual control
• Two digital displays for the best convenience. Even if any test is ongoing inside of the chamber, unit conditions such as velocity, temperature and humidity can be easily checked by the inner and outside displays
• Digital differential pressure sensor allows for easy verification of HEPA filter condition great for knowing when to change HEPA filter
• When UV light intensity is lower than 80%, UV warning lamp is automatically on to let users know when to change UV lamp
• Comfortable front access to cartridge type of filters for easy replacement
• Easy blower speed adjustment by the control panel
• Highly durable, rust-free and easy-to-clean grade 304 stainless steel work surface
• The inner left side magnetic board allows some memos and small tools

Safety

• UV-blocking and impact-resistant tempered glass door
• If the sash is opened more than the recommended sash height level during operation, the warning alarm will activate and alarm users to lower the window to the recommended sash level to prevent contamination of samples
• If the sash is opened during UV-lamp operation, the UV lamp automatically turns off to protect users
• Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace
• Protection against over-current

Specification

Air Flow Type:  Vertical Laminar Flow

Air Volume, minimum/maximum (cmh):  0 to 1020

Laminar Airflow Velocity (m/s):  0.3

Air Cleaniness within work space:  ISO 14644-1 class 4, US Federal Standard 209E class 10

Noise Level (dB):  Typically <65

Filters

     HEPA Filter:  Typical efficiency of 99.99% on 0.3µm (US MIL-STD-282); Micro glass fibre Media, Particle board, AL separator, Neoprane gaskets

     Pre-Filter:  Polyester fibres with a filter efficiency of 85% (A-F-I TEST); Aluminium frame, polyester media (Pre-filter)

Construction

     Main Body:  Powder coated steel

     Work Surface: Stainless steel, grade 304, brushed finish

     Windows (front/side): Colourless and transparent UV absorbing 5mm tempered glass

Illumination

     Intensity (lux):  >650

     Fluorescent Lamp (W):  2 x 30

     UV Lamp (W):  1x 25

Electric Socket:  1 x 230V

Dimensions; W x D x H (mm)

     Internal:  945 x 570 x 670

     External without Stand:  1135 x 647 x 1150

     External with Stand:  1135 x 647 x 1870

Weight (Kg)

     Cabinet:  140

     Cabinet and Stand:  170

Downloads

Click here for download View File
