Sale!

Ceti WFHD5C 5MP Microscope Camera with SD Card

SKU: 9558.0005
BRAND:

£1,026.06 £715.00

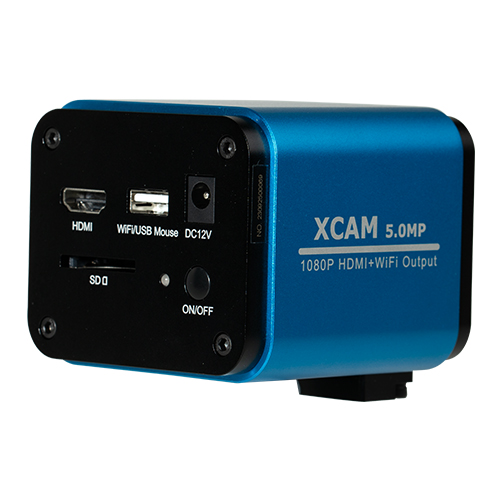

Ceti’s WFHD5C Microscope Camera with SD Card is an all-in-one (HDMI + WiFi + SD Card) C-mount camera with a highly sensitive Sony CMOS sensor, simultaneous HDMI & WiFi output, mouse control and built-in image capture and video recording to an SD card.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Ceti’s WFHD5C Microscope Camera with SD Card is an all-in-one (HDMI + WiFi + SD Card) C-mount camera with a highly sensitive CMOS sensor, simultaneous HDMI & Wi-Fi output, mouse control and built-in image capture and video recording to an SD card. When using the optional 11.6″ monitor, there is a built-in toolbar including zoom, mirror, comparison and freeze functions. For use with a device other than the monitor, PC, Linux and MAC IOS software is included.

This multiple interface microscope camera utilises an ultra-high performance Sony CMOS sensor as the image capture device. HDMI and WiFi are used as the data transfer interface to an HDMI display or computer / laptop, with USB connection also available to a PC. If an HDMI connection is used, the included USB mouse can be used to control the camera, browse and compare the captured image, play video and play back images. For WiFi output, unplug the mouse and plug in the USB WiFi adapter and connect your device’s WiFi to the camera. The image stream can then be transferred to the device via the advanced software (included). With this software you can control the camera and process the image as required. The camera body, made from tough aluminium alloy, ensures a heavy-duty, workhorse solution. The camera is equipped with a high-quality IR-CUT filter to protect the camera sensor.

Features

All-in-one (HDMI + WiFi + SD Card) C-mount camera with a highly sensitive CMOS sensor, simultaneous HDMI & Wi-Fi output, mouse control and built-in image capture and video recording to an SD card.

Specification

Power Supply:  12V/2A DC

Image Capture:  JPEG

Video Recording:  ASF 1080P up to 30fps

Control Panel (via monitor):  Exposure Gain, White Balance, Colour Adjustment, Sharpness, and Denoise Control

Toolbar (via monitor):  Zoom, Mirror, Comparison, Freeze, Cross, Browser Function

Sensor and Size:  Sony IMX178©, 5Mpx, 1/1.8″ (6.22 x 4.67mm); Pixel size:  2.4 x 2.4µm

FPS/Resolution:  60 @ 1920 x 1080 (HDMI and USB), 25 @ 1920 x 1080 (WiFi)

Binning:  1 x 1

Exposure (ms):  0.03 to 918

WiFi:  802.11n 150Mbps; RF Power 20dBm (maximum)

Max. Connected Devices (WiFi):  3 to 6 (depending on the environment and connection source)

White Balance:  Auto

USB Connection Environment:  Microsoft® Windows® XP/Vista/7/8/8.1/10 (32 and 64 bit), Mac OS X and Linux

Tripod Attachment:  Included

Dimensions; W x D x H (mm):  78 x 70 x 92

Shipping Weight (Kg):  0.47

Operating Environment

     Operating Temperature (°C):  -10 to +50

     Storage Temperature (°C):  -20 to +60

     Operating Humidity (%RH):  30 to 80

     Storage Humidity (%RH):  10 to 60

Power Supply:  DC 12V/2A adapter

Downloads

Click here for download View File
