Description

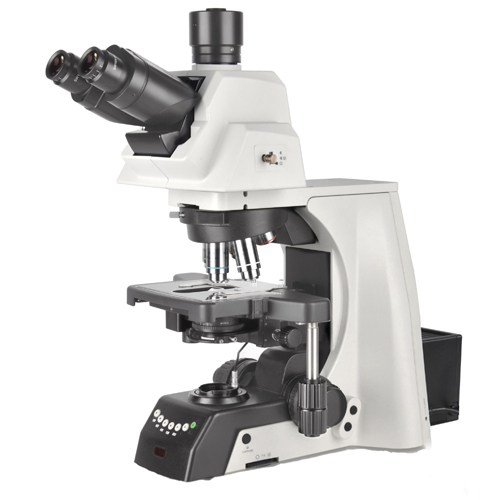

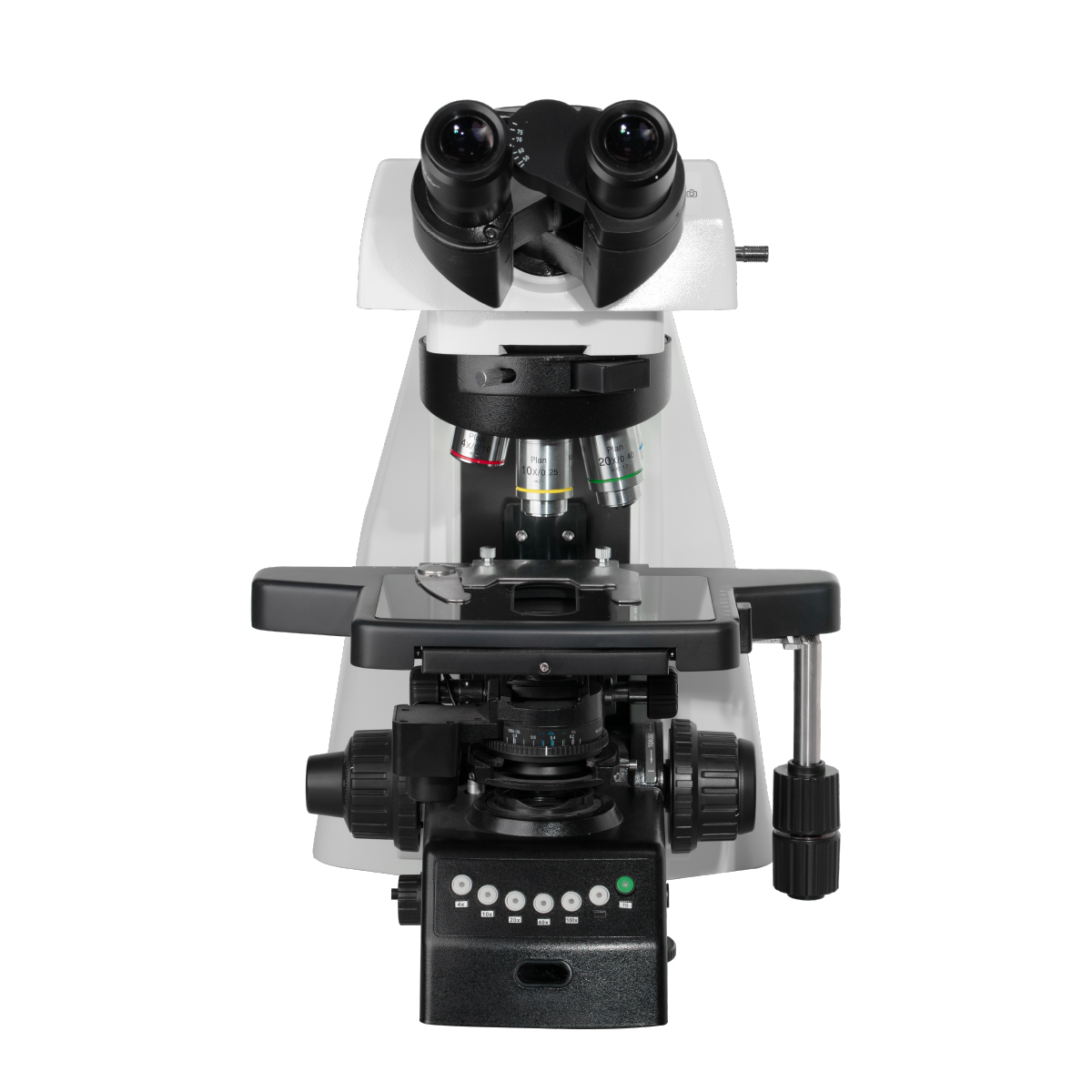

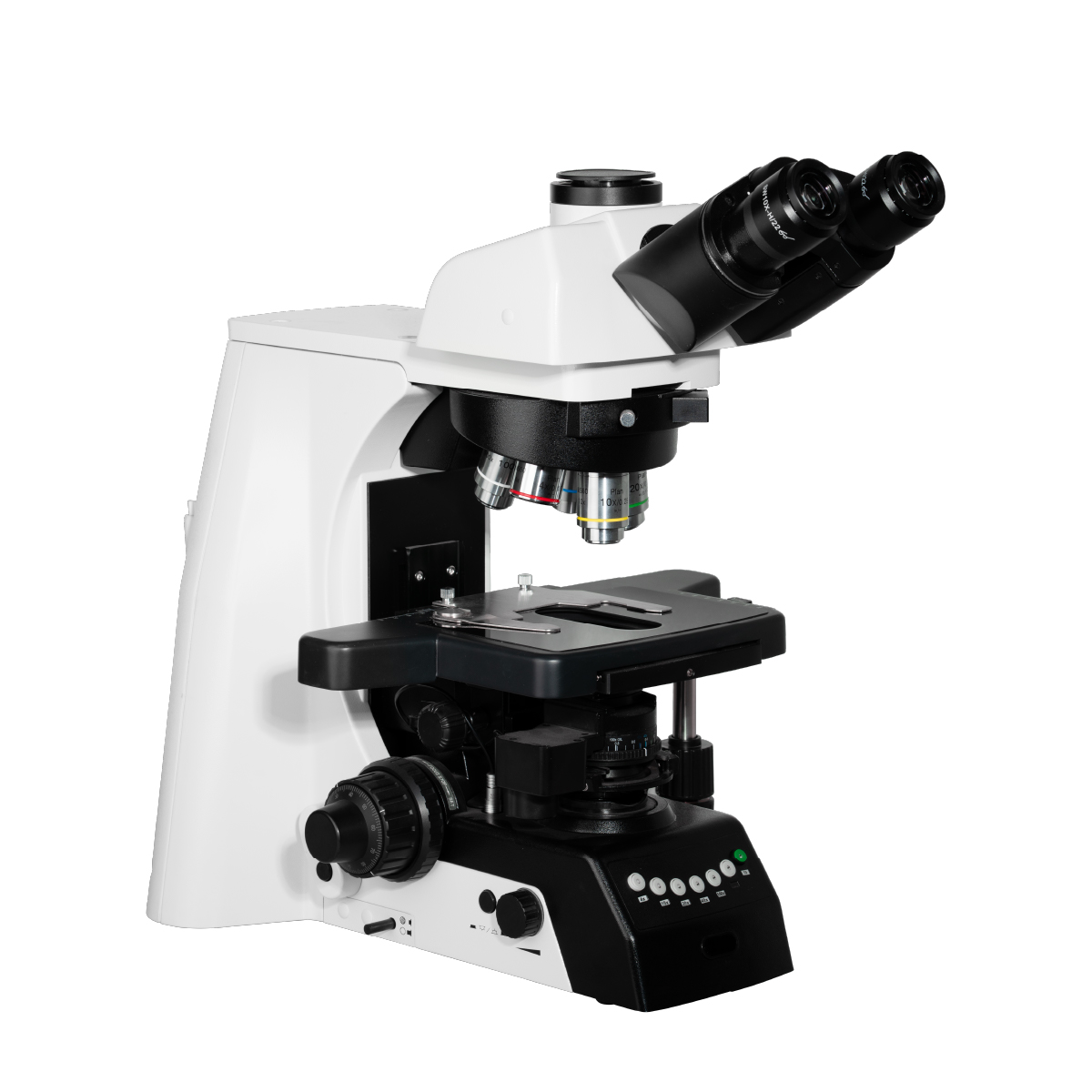

Ceti’s Vulcan Motorised LED Compound Microscope is a motorised biological microscope is designed to allow users to enjoy safe, comfortable operation, and superb quality observations of their specimens. The intensity of illumination for each objective can be adjusted and the intelligent AIS (Automatic Illumination System) automatically recalls that intensity with the relevant objective. This averts the possibility of uncomfortable over-bright illumination. With the handy ECO function the transmitted light turns off automatically after 30 minutes of non-use. This not only saves energy but also prolongs the life of the long-life LED even further.
The motorised nosepiece adds to the ergonomics of the microscope as objectives can be selected via buttons on the front of the stand, removing the necessity to manually rotate the nosepiece – with the Remote-Control Pad objectives can be switched by simply pressing the buttons. Users can also self-define two of the most frequently used objectives and swap between these two objectives by pressing the green button.
The motorised swing-out condenser automatically swings the top lens element in or out according to the objective lens that is selected via the intelligent linking system. The optional epi-fluorescence system features high quality filter blocks and filter lenses. Six filter blocks can be fitted into the epi-fluorescence attachment, allowing the operator to view different fluorophores without the necessity to change filter blocks.
Features
• Mechanical stage with low X/Y controls and Gorilla Glass insert for smooth operation
• Super wide-field 10X, FN22 eyepieces for maximum field of view
• Sextuple, reversed nosepiece with five Infinity Corrected N-Plan Achromatic objectives
• Ergonomic, tilting trinocular eyepiece tube for comfortable viewing over long periods
• Automatic Illumination System with auto intensity control on each objective
• Full Köhler illumination and a wide range of accessories
Specification
Optical Head: Ergonomic tilting trinocular with photo port, adjustable from 0° to 35° 3-position beam splitter; 0:100, 100:0, 80:20
Eyepieces: 10x / 22 mm super widefield
Turret Format: Sextuple
Siendentopf: Yes (47 to 78 mm interpupillary distance)
Dioptre: Dioptre adjustment on both eyepiece tubes
Nosepiece: Motorised with remote switching pad on base, nosepiece rotating buttons behind focus knobs
Objectives: 4x, 10x, 20x, 40x, 100x (oil) Infinity Corrected N-Plan Achromatic
Objective Type: Infinite
Condenser: Motorised Brightfield Abbe – NA 1.25 with automatic swing-out when 4x objective is selected, focusable and centrable iris diaphragm
Stage Size: Double layer mechanical, 190 x 152 mm with Gorilla Glass insert and slide holder, 78 x 32 mm movement, vernier scale
Focusing: Low position coaxial coarse and fine with stop, fine focus knobs can be swapped, full tension control
Illumination: 3W S-LED full Kohler illumination with fly-lens, intensity control and Automatic Illumination System (AIS),
Package: Instruction manual, dust cover and immersion oil (10 ml)
Additional Features: ECO function switches illumination off after 30 minutes non-use, six filter blocks can be fitted into the epi-fluorescence attachment
