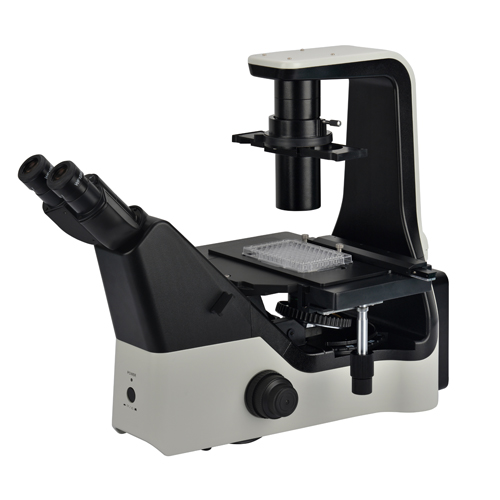

Ceti Vertex-FL LED Trinocular Inverted Epi-Fluorescence Microscope with 4x, 40x LWD Plan Achromatic Objectives, PH10x, PH20x, PH40x LWD Plan Achromatic Objectives and 3W LED Illumination plus 3.6W LED Florescence unit

SKU: 3900.5000M
BRAND:

£11,169.61

Ceti’s Vertex-FL Trinocular Inverted Microscope is a substantial, superbly engineered microscope that has been specially developed to produce exceptionally high-quality, high contrast phase contrast and brightfield images of your specimens.

Description

Ceti’s Vertex-FL Trinocular Inverted Microscope is a substantial, superbly engineered microscope that has been specially developed to produce exceptionally high-quality, high contrast phase contrast and brightfield images of your specimens.

The controls are ergonomically positioned and the large stage, with its range of standard accessories, allows you to observe almost all classes of specimens on the microscope.

This inverted microscope features 3W S-LED illumination and Phase Contrast as standard but can also be configured with Hoffman Modulation Contrast (HMC) or 3D Emboss Contrast, both of which can be used with glass or plastic dishes to increase specimen contrast. This makes it suitable for advanced research applications. The included mechanical stage can be fitted with a variety of holders for Petri dishes, slides and well plates and the condenser can be removed to allow the stage to accept larger flasks or cell factories.

An optional photo port is available, along with 1x and 0.5x C-Mount relay lenses. This model also comes with an epi-fluorescence attachment. This can be configured with up to 3 filter blocks

Features

• Large base to ensure stability whilst viewing flasks, slides and dishes.
• Super wide-field 10X, FN22 eyepieces with dioptric adjustment for a wide field of view.
• Quintuple, reversed nosepiece with four LWD Infinity Corrected Plan Achromatic objectives.
• Eyepiece tube with side mounted photo port to accept digital microscope cameras.
• Bright, white LED transmitted illumination with intensity control.



Specification

Optical Head: Trinocular, inclined at 45°, Side mounted camera port (100/0 : 0/100)

Siedentopf: Yes (48 to 75 mm interpupillary distance)

Dioptre: Dioptric adjustment on both eyepiece tubes

Eyepieces: 10x/22 mm super widefield

Turret Format: Quintuple

Objectives: 4x, 40x LWD Plan Achromatic, PH10x, PH20x, PH40x LWD Plan Achromatic

Objective Type: Finite

Condenser: N.A. 0.3, W.D. 75 mm, without condenser, working distance 187 mm

Stage Size: 170 x 250 mm With separate attachable mechanical stage (129 x 80 mm), accepts 5 types of micro-testplate, well clamper and stage clip

Focusing: Coaxial coarse and fine with stop, tension adjustment ring, fine division 1 µm, fine stroke 0.2 mm

Illumination – transmitted: 3W S-LED with intensity control with built-in fly-eye lens

Illumination – reflected: 100W HBO Wavelengths available 365 nm, 405 nm, 485 nm & 525 nm.

Package: Three filter cubes blue, green and UV filter, two spare fuses, immersion oil (10 ml), soft rubber eyecups, dust cover, and instruction manual

Additional features:

Phase System: Condenser with 4x Phase Annular Phase 10x, 20x, 40x Universal Annular Phase Plate

Hoffman Phase: Hoffman condenser and 10x, 20x, 40x special objectives

Relief 3D Contrast: Emboss contrast 10x, 20x, 40x universal, special emboss contrast Slider

Epi-Fluorescence: Filter cubes with noise terminator mechanism with up to 3 epi-fluorescence filter cubes and attachable contrast shield

ECO Lighting Function: Light source automatically off in 15 minutes
