Description

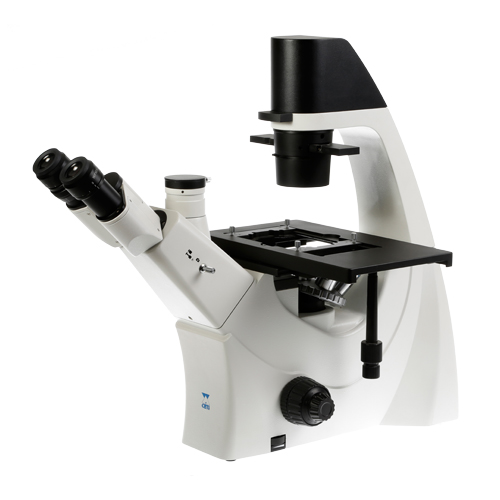

Ceti’s Versus-TC LED Trinocular Inverted Microscope with Integrated Phase Contrast is a robust tissue culture microscope, equipped with three phase contrast objectives as well as 10x brightfield objective that is useful for visualising a larger field of view. The phase slider is fitted with centrable phase rings plus an open position for brightfield viewing.
The Versus-TC LED also features a trinocular head with a camera port to accept a wide variety of cameras, a pair of 10x super wide-field (FN22) eyepieces, a quintuple position nosepiece with convenient click stop so you know that the selected objective is aligned correctly, infinity corrected, long working distance plan achromatic optics (10x brightfield in addition to 10x, 20x, and 40x phase contrast), a large mechanical stage equipped with a range of Petri dish and culture flask holders, ergonomic coaxial coarse and fine focus and a bright white, adjustable intensity, 3W LED light.
Features
• Compact, sturdy base for many years of use.
• Super wide-field 10X, FN22 eyepieces with dioptric adjustment for a wide field of view.
• Quintuple, reversed nosepiece with four LWD Plan Achromatic objectives.
• Eyepiece tube with photo port to accept digital microscope cameras.
• Bright, white LED illumination with intensity control.
• Phase contrast condenser with centrable phase rings.
Specification
Optical Head:
Trinocular with photo port, inclined at 45°
Interpupillary distance adjustment (Siedentopf type): 48 to 75mm
Dioptric adjustment on both eyepiece tubes
Eyepieces:
10x/22mm wide-field, centering telescope
Nosepiece:
Quintuple reversed, revolving with click stop
Objectives:
10x Plan Achromatic Brightfield LWD and 10x, 20x, 40x Phase Contrast Plan Achromatic LWD
Condenser:
Phase contrast condenser with adjustable centering and brightfield position
Working Distance: 70mm
Focusable and centrable, iris diaphragm
Stage:
300 x 170mm with additional mechanical stage
75 x 132mm movement, Vernier scale
Focusing Knobs:
Coaxial course and fine with stop
Tension adjustment ring
Mains Power:
220 – 240V/50 – 60Hz
Illumination:
3W LED with intensity control
Supplied With:
Blue and green filter, 2 spare fuses, immersion oil (10ml), Allen key, dust cover, and instruction manual
