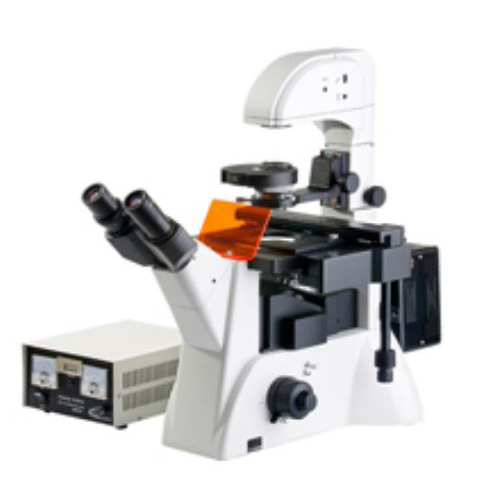

Ceti Versus Trinocular Epi-Fluorescence Inverted Microscope

SKU: 3800.0000M
BRAND:

£12,431.60

Ceti’s Versus Epi Fluorescent Inverted Microscope is specially designed to produce high-quality phase contrast and bright-field images of specimens, combining the features of both an epi-fluorescent and an inverted microscope. This versatile microscope is well-suited to a range of applications, including fluorescence microscopy in biological research, pharmaceutical studies, medical diagnostics, and disease prevention.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Ceti’s Versus Epi Fluorescent Inverted Microscope is specially designed to produce high-quality phase contrast and bright-field images of specimens. Combining the features of both an epi-fluorescent and an inverted microscope,  this product offers superior optical performance with its UIS optical system, long working distance plan achromatic objectives and wide field eyepieces.

  • Built with a compact, stable frame, it provides excellent shock resistance.
  • Innovative condenser system enables easy adjustment for high-culture dish observations, making it ideal for dynamic cell and tissue studies.
  • Modular design ensures quick and safe adjustments to the illumination and filter switching processes.
  • Offers four filter blocks as a standard.



This versatile microscope is well-suited to a range of applications, including fluorescence microscopy in biological research, pharmaceutical studies, medical diagnostics, and disease prevention.

Additional information

Pack Size

1

Features

• Dioptric correction on one eyepiece tube.
• Vertical photo/video port with beam-splitting prism on sliding mount (80-20%).
• Long working distance condenser with template phase contrast unit.

Specifications

Optical Head:

Trinocular, inclined at 45°

Interpupillary Distance Adjustment (Siedentopf Type):

53 to 75mm

Eye Pieces:

10x/22mm wide-field

Nose Piece:

Quintuple revolving with click stop, inverted

Objectives:

10x, 20x, 40x Planachromatic LWD/10x, 20x, 40x Phase Contrast

Turret phase contrast

Centering telescope

Condenser:

Working Distance: 55mm

Turret phase contrast with brightfield 0 position

Stage:

Size 227 x 208mm with additional mechanical stage

Three interchangeable culture dish holders

118mm glass stage plate

Focusing:

Coaxial course and fine

Pre-focusing mechanism (on left knob)

Tension adjustment ring (on right knob)

Lamp House:

Lamp holder adjustable

Field diaphragm

Mains Power:

220/240V – 50/60Hz (Euro connector)

Converter:

Built-in low voltage (6V – electronic) with light intensity control

Bulb:

Halogen 6V/30W/G4

Supplied With:

1 spare bulb, 1 spare fuse, allen key (for fixing condenser), dust cover, and instruction manual

Epi-Fluorescence System:

Mercury 100W/DC ultra high power lamp house with separate power supply unit with count down timer

Downloads

Click here for download View File
