Description

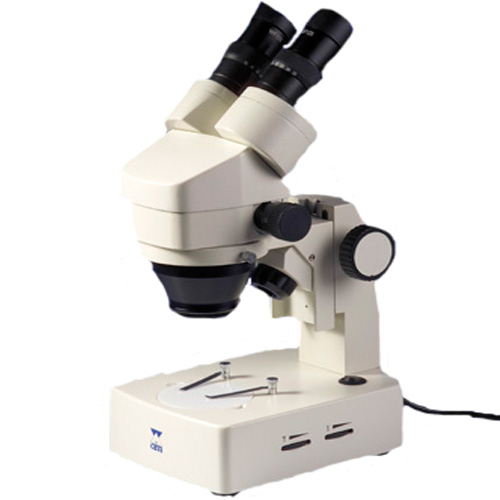

Suitable for heavy duty applications in teaching laboratories, CETI’s Twin-Z Stereo Microscope is a powerful stereo microscope that delivers high-quality images.
It features an inclined 45° and 360° rotatable binocular optical head and two wide field 20mm eyepieces with dioptric adjustments provided on one eyepiece. The optical head also comes with built-in zoom control, allowing students to clearly view components/specimens. The stage features a black/white frosted contrast plate and two stage clips. Illumination is provided through episcopic and diascopic Halogen 12V/10W bulbs.
Specification
Optical Head:
Binocular, inclined at 45° and 360° rotatable
Interpupillary Distance Adjustment (Sidentopf type): 55 to 75mm
Dioptric adjustment on one eyepiece
Built-in zoom control
Eyepieces:
10x/20mm wide-field
Objectives:
1x with zoom control range (0.7x to 4.5x)
Stage:
Frosted and black/white contrast plate
2 stage clips
Illumination:
Independent variable light intensity
Converter with built-in low voltage (12V electric)
Episcopic 12V/10W Halogen (fixed settings)
Diascopic 12V/10W Halogen (fixed settings)
Main Power:
220 – 240V/50 – 60Hz (Euro connector)
Packing:
Styrofoam in cardboard box
Packing Dimensions (w x d x h): 34 x 18 x 35cm
Gross Weight (kg): 4
Supplied with 2 rubber eyecups, dust cover and instruction manual
