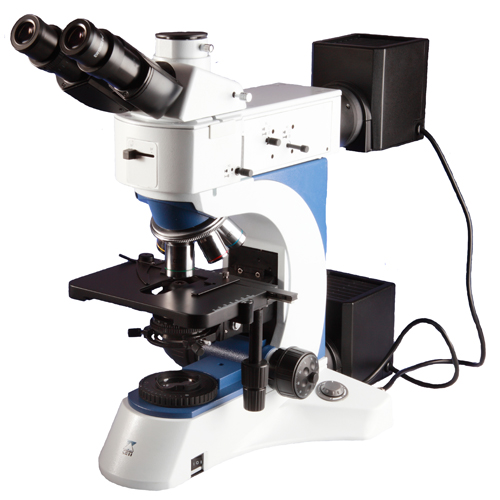

Ceti Tritex Trinocular Industrial Microscope

SKU: 3100.6000M
BRAND:

£12,012.58

The Ceti Tritex Trinocular Microscope (3100.6000M) is fully equipped to allow for the evaluation of samples in materials science.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Ceti Tritex Trinocular Microscope (3100.6000M) is fully equipped to allow for the evaluation of samples in materials science. This industrial microscope comes with both transmitted and reflected light sources and has in addition darkfield objectives, which allow for the examination of highly reflective samples. It also has 100W Halogen illumination for both the transmitted and reflected light sources.

Additional information

Pack Size

1

Features

Industrial microscope comes with both transmitted and reflected light sources and has in addition darkfield objectives, which allow for the examination of highly reflective samples.

Specification

Optical Head:

Trinocular, inclined at 30°C

Interpupillary Distance Adjustment (Siedentopf Type): 48 to 75mm

Vertical photo/video port with beam-splitting prism on sliding mount

Vertical height adjustment two positions 20mm

Eyepieces:

10x/22mm wide-field (pair)

Nosepiece:

Quintuple reversed and revolving with click stop

Objectives:

5x, 40x, 50x, 100x Infinity Corrected

10x, 20x Infinite Plan Achromatic (BF/DF)

Condenser:

Swing-out condensed lens – NA 0.90/NA 1.25

Koehler illumination centrable and focusable (external housing) with integrated field diaphragm and concentrating lens

Iris diaphragm

Swing out filter holder

Stage:

Size 185 x 140mm with built-in mechanical stage and slice clip

75mm transversal movement

55mm longitudinal movement

Nonius reading up to 0.1mm

Maximum sample height 30mm

Focusing:

Coaxial coarse and fine

Pre-focusing mechanic (on left knob)

Tension adjustment ring (on right knob)

Illumination:

Variable

Incident light bulb Halogen 12V/100W/G6 Koehler illumination and aspherical condenser

Transmitted light 12V/100W/G6 Koehler illumination swing out condenser NA 0.9/0.25

Filter: blue (diameter 38mm). Other colours available on application.

Main Power:

220 – 240V/50 – 60Hz (Euro connector)

Converter: built-in low voltage (12V – electric) with light intensity control

Packing:

Supplied With: 1 spare bulb, blue filter, 2 spare fuses, immersion oil (10ml), dust cover, and instruction manua
