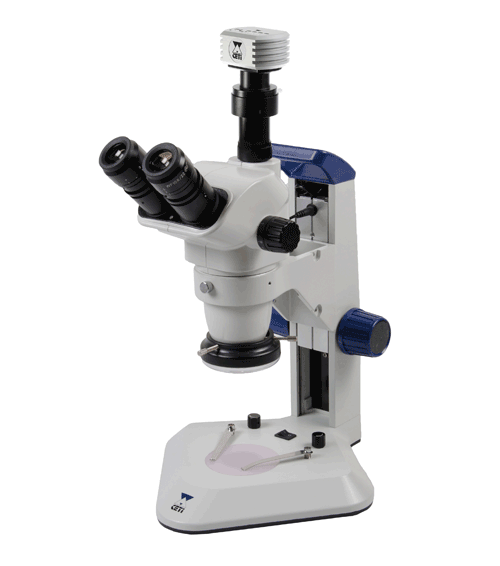

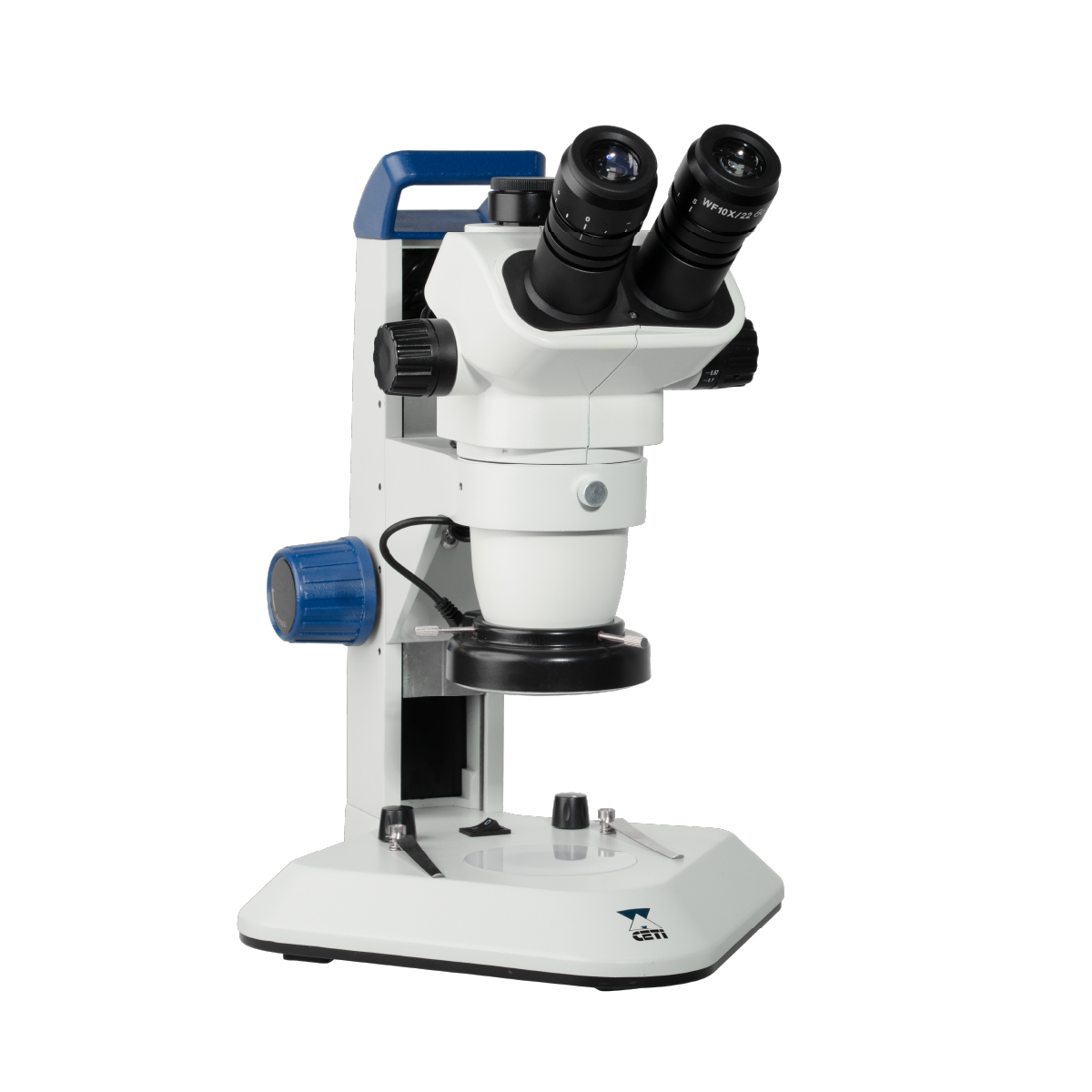

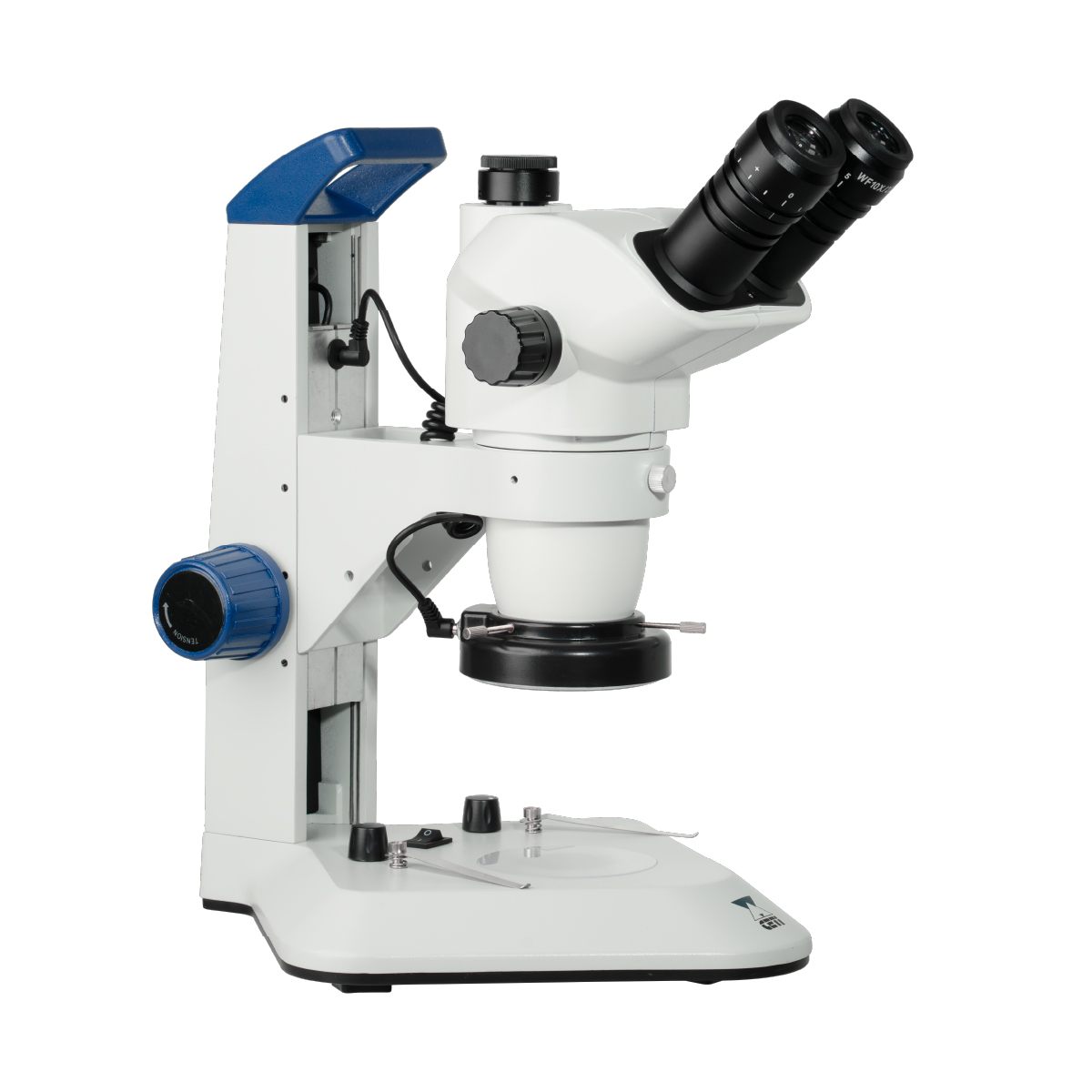

Ceti Steddy-D Trinocular Stereo Microscope, Integrated 3MP Camera, diamond base with 0.67x – 4.5x Plan Achromatic Objectives and 5W Transmitted plus 8W Reflected LED Illumination

SKU: 7500.9000M
BRAND:

£3,835.81

Ceti’s Steddy-D Stereo Microscope with Integrated 3MP Camera and Diamond Base is one of Ceti’s most popular zoom microscopes. It provides high quality, wide field of view images, a wide zoom range and is highly robust and extremely well built, suitable for the most demanding uses.

Description

Ceti’s Steddy-D Trinocular Stereo Microscope is one of Ceti’s most popular zoom microscopes. It provides high quality, wide field of view images, a wide zoom range and is highly robust and extremely well built, suitable for the most demanding uses. The Steddy-D features a convenient 0.67x – 4.5x zoom ratio and a pair of 10x super widefield (FN 22) eyepieces, giving a total magnification range of 6.7x to 45x or, with auxiliary objectives and/or alternative eyepieces, 3.35x to 180x.

The optical quality is extremely good giving a bright, crisp 3D image of the specimen. The Steddy-D features a convenient, in-built 3MP digital camera to capture images or videos, great for teaching laboratories​. These versatile stereo zoom microscopes are an excellent, professional-grade instrument choice for industry, researchers and educational establishments.

The Steddy stereoscopic zoom microscope is highly robust and extremely well built, suitable for the most demanding uses. The optical quality is extremely good giving a bright, crisp 3D image of the specimen. The diamond shaped base allows the hands to be rested on the base of the unit providing the necessary support for delicate operation or manipulation of the sample during examination. The broad base model is ideal for larger samples.​



Additional information

Pack Size

1

Features

• Diamond base
• Super widefield 10x, FN 22 eyepieces for maximum field of view
• Wide magnification zoom range of 6.7x to 45x as standard (Max 3.35x to 180x with additional objectives)
• Built-in 3MP digital camera with included Mac/PC software
• Dual LED illumination

Specification

Optical Head: Trinocular, inclined at 45°, integrated camera

Siedentopf: Yes (55 to 75 mm interpupillary distance)

Dioptre: Dioptric adjustment on both eyepiece tubes

Eyepieces: 10x / 22 mm super widefield

Turret Format: Single

Objectives: 0.67x – 4.5x Plan Achromatic

Objective Type: Finite

Stage Size: Rectangular support with dual coarse focus knobs and tension control

Focusing: Coaxial coarse with safety stop and tension adjustment

Illumination – transmitted: 5W LED

Illumination – reflected: 8W LED

Special Features: Diamond base integrated 3MP camera, with auxiliary objectives and/or alternative eyepieces, 3.35x to 180x

Package: Dust cover, two rubber eye cups, blue filter and instruction manual. Software. CD supplied for camera

Additional Features: Cold light sources can be added

Downloads

Click here for download
