Description

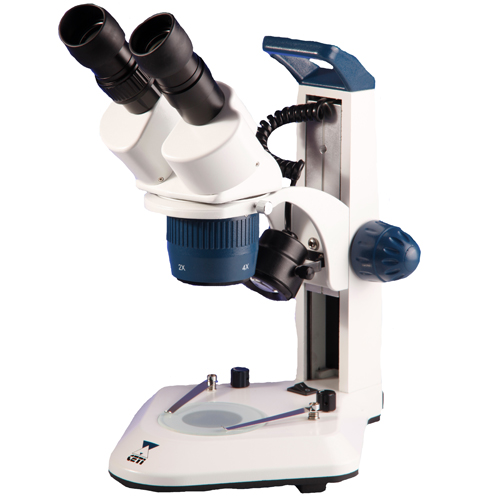

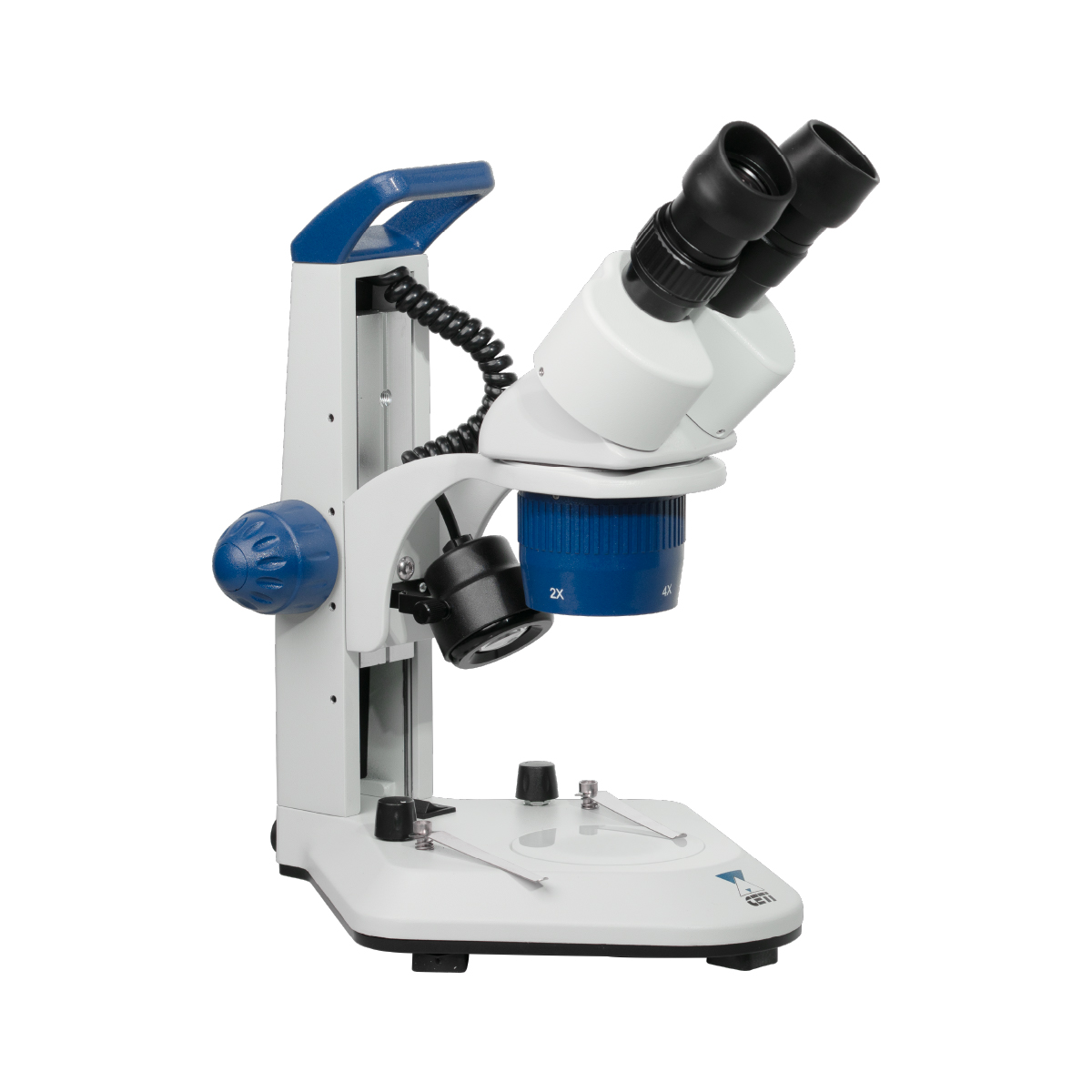

The Ceti Star-24 LED Stereo Microscope is designed for both educational and professional use. It is particularly well-suited to viewing specimens at low magnifications and introduces the benefits of LED lighting into the stereo range of microscopes.
The diamond shaped base with sloping sides provides an ergonomic hand rest during sample manipulation to ensure control and minimise the possibility of damage occurring.
Supplied with two rubber eye cups, dust cover, and instruction manual.
Features
LED Stereo Microscope is designed for both educational and professional use. It is particularly well-suited to viewing specimens at low magnifications (2x and 4x).
Specification
Optical Head:
Binocular, inclined at 45° and 360° (rotatable)
Interpupillary Distance Adjustment (Sidentopf Type): 50 to 75mm
Diotropic adjustment on one eyepiece
Eyepiece:
10x/20mm wide-field and anti-fungal optics
Magnification:
20x and 40x with turret charger (10x and 30x with turret charger available as special option)
Field of View: 10mm/5mm
Working Range:
100mm
Focusing Device:
Rack and pinion system with safety stop.
Fixed.
Stage:
Frosted and black/white contrast plates
Two stage clips
Illumination:
Variable light intensity
Episcopic: Fixed under the optical head – high intensity 3W LED
Diascopic: Built-in rectangular base – high intensity 3W LED
Two individual on/off switches
Two stage clamps
Mains Power:
220 – 240V/50 – 60 Hz (Euro connector)
Converter:
Built-in low voltage (12V – electronic)
Packing:
Styrofoam in cardboard box
Packing Dimensions (w x d x h):
34 x 18 x 35cm
Gross Weight (kg):
4
