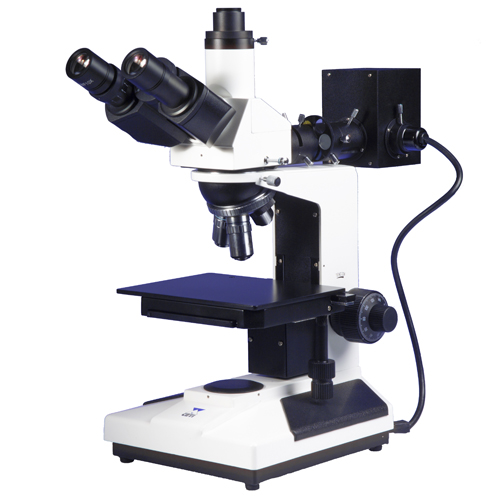

Ceti Reflex Trinocular Materials Microscope

SKU: 6400.0000M
BRAND:

£2,560.82

Ceti’s Reflex Trinocular Microscope has a vertical viewing port and beam splitting prism and an external lamp housing.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Ceti’s Reflex Trinocular Microscope has a vertical viewing port and beam splitting prism and an external lamp housing.

Features

Trinocular microscope with a vertical viewing port and beam splitting prism and an external lamp housing. The flat mechanical stage allows for observation of prepared subject matters with magnifications up to 1600x.



Specification

Optical Head:

Trinocular, inclined at 30° with vertical photo port

Interpuillary Distance Adjustment (Siedentopf Type): 55 to 75mm

Dioptric compensation on one eyepiece tube

Eyepieces:

10x/18mm wide-field

Nosepiece:

Reversed quadruple nosepiece with click stop

Objectives:

10x, 40x, 60x Plan Achromatic

Stage:

Size 140 x 185mm with built-in graduated mechanical stage and stage clamps

Transversal movement: 70mm

Longitudinal movement: 50mm

Focusing:

Coaxial coarse and fine

Pre-focusing mechanism (on left knob)

Tension adjustment ring (on right knob)

Illumination:

Reflected Koehler illumination (external housing) with focusable front lens

Field and iris diaphragm for reflected light

Filter discs: green, yellow, blue and frosted

Supplied With:

1 spare bulb, 2 spare fuses, dust cover, and instruction manual

Polarisation:

Built-in polariser with removable analyser

Main Power:

200 – 240V/50 – 60Hz (Euro connector)

Packing:

Two Styrofoam shelves in a cardboard box

Packing Dimensions (W x D x H): 43 x 30 x 36cm

Gross Weight (kg): 9.5
