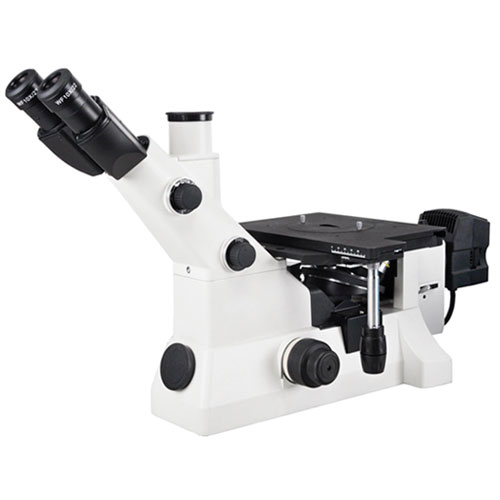

Ceti Metex Inverted Industrial Microscope

SKU: 3660.6000M
BRAND:

£14,409.34

With its high performance infinity corrected optical system, Ceti’s Metex Inverted Microscope produces exceptional stability and intense illumination.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

With its high performance infinity corrected optical system, Ceti’s Metex Inverted Microscope produces exceptional stability and intense illumination.

Full detailed examinations can be carried out with the use of DIC observation.

Features

Inverted Microscope produces exceptional stability and intense illumination, with integrated DIC optics.

Specification

Optical Head:

Binocular, inclined at 30°

Interpupillary Distance Adjustment (Sidentopf type): 48 to 75mm

Eye Pieces:

10x/22mm wide-field and 10x/20mm (with cross hair scale)

Nosepiece:

Quadruple, revolving with click stop

Objectives:

4x, 10x, 40x (spring loaded), 100x (oil – spring loaded) Planachromatic

Condenser:

N/A

Stage:

Size 226 x 178mm double layer mechanical stage

3 interchangeable stage plates

Focusing Knobs:

Coaxial course and fine

Mains Power:

220 – 240V/50 – 60Hz (Euro connector)

Converter:

Built-in low voltage (6V – electronic) with light intensity control

Bulbs:

Halogen 12V/50W/G4

Supplied With:

One spare bulb, one spare fuse, allen key (for fixing condenser), dust cover, and instruction manual

Packing:

Two Styrofoam boxes in cardboard box

Packing Dimensions (w x d x h):

28 x 33 x 44cm

Gross Weight (kg):
7

Downloads

Click here for download View File
