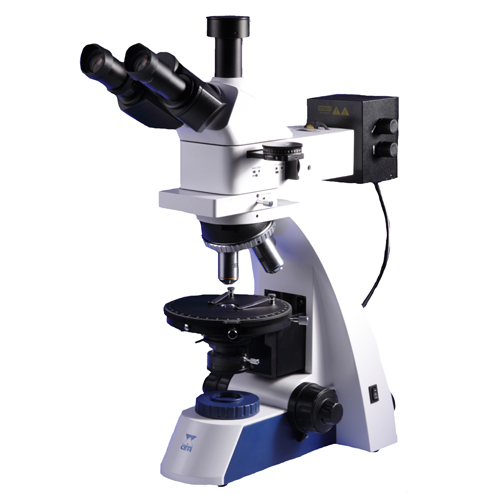

Ceti Magtex Trinocular Reflected and Transmitted Light Microscope with Polarisation and 4x, 10x, 40x, 60x Plan Achromatic Objectives

SKU: 2783.0000M
BRAND:

£4,176.65

The Ceti Magtex Trinocular Reflected & Transmitted Light Microscope With Polarisation is a research-grade, dedicated polarised industrial microscope complete with Bertrand lens and Lambda compensating plates.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Ceti Magtex Trinocular Reflected & Transmitted Light Microscope With Polarisation is a research-grade, dedicated polarised industrial microscope complete with Bertrand lens and Lambda compensating plates. This unit also has both reflected and transmitted lighting.

The trinocular head has a vertical photo/video port on a sliding prism with eyepieces that have independent dioptric control and interpupillary distance adjustment.

The backwards facing four position turret comes complete with 4x, 10x, 40x, and 60x Plan Achromatic tension free and parcentred objectives matched with a 10x wide field eyepiece.

Features

Reflected & Transmitted Light Microscope for Polarisation with Bertrand lens and Lambda compensating plates.

The trinocular head has a vertical photo/video port on a sliding prism with eyepieces that have independent dioptric control and interpupillary distance adjustment.

Specification

Optical Head:

Trinocular, including vertical photo/video port (Ø 30mm) on sliding prism

Interpupillary Distance Adjustment (Siedentopf Type): 53 to 75mm

Dioptric compensation on one eyepiece tube

Eyepieces:

10x/18mm wide-field

Objectives:

4x, 10x, 40x, 60x Plan Achromatic (tension free and parcentred – CCS optics)

Condenser:

Precondenser with field diaphragm

Brightfield Abbe – NA 1.25

Iris diaphragm and filter holder

Centrable through a centring device

Focusable with rack and pinion height adjustment system

Stage:

180mm round polarisation stage

Focusing:

Coaxial coarse and fine

Pre-focusing mechanism (on left knob)

Tension adjustment ring (on right knob)

Illumination:

Halogen variable

External housing with condensing lens and field diaphragm

Iris diaphragm, centrable

Filters: yellow, blue, green (Ø 32mm)

Incident Light: 6V/20W Halogen lamp

Reflected Halogen 6V/20W/G4

Polarisation:

Includes simple polariser and analyser

Main Power:

220 – 240V/50 – 60Hz (Euro connector)

Converter: built-in low voltage (6V – electronic) with light intensity control

Packing:

Two Styrofoam shelves in a cardboard box

Packing Dimensions (w x d x h): 68 x 50 x 50cm

Gross Weight (kg): 15

Downloads

Click here for download View File
