Ceti Magnum-POL Trinocular Compound Polarisation Microscope with LED Illumination and 4x, 10x, 40x and 60x Infinity Corrected Plan Achromatic Objectives

SKU: 2753.0000M
BRAND:

£3,779.19

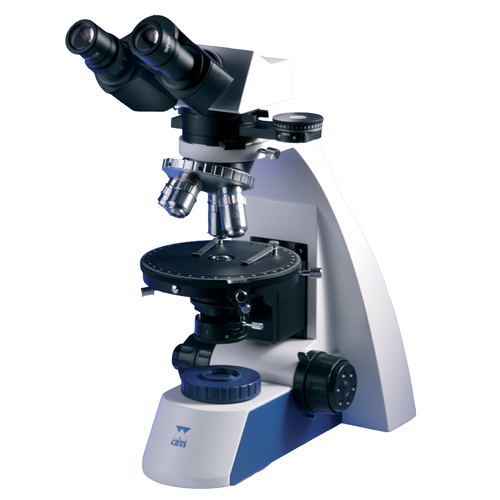

Ceti’s Magnum-POL Trinocular Compound Microscope with Polarisation is a popular, economically priced, biological upright microscope. Providing excellent quality images via the widefield FN 20mm eyepieces, this microscope includes four Infinity Corrected Plan Achromatic objectives in the reversed quintuple nosepiece.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Ceti’s Magnum-POL Trinocular Compound Microscope with Polarisation is a popular, economically priced, biological upright microscope. Providing excellent quality images via the widefield FN 20mm eyepieces, this microscope includes four Infinity Corrected Plan Achromatic objectives in the reversed quintuple nosepiece.

It features a robust, T-shaped base, designed to offer maximum stability. Modern, ergonomic features such as a 30° inclined eyepiece tube, ensure a comfortable viewing position over a prolonged period.

Additional information

Pack Size

1

Features

• Sturdy base for comfortable viewing over long periods
• Widefield 10x / FN 20 eyepieces with dioptre adjustment
• Quintuple, reversed nosepiece with four Infinity Corrected Plan Achromatic objectives
• Trinocular eyepiece tube as standard to accept digital microscope cameras
• Bright, white LED illumination with intensity control
• Full Köhler illumination

Specification

Optical Head

Trinocular, inclined at 30°, with photo port

Interpupillary Distance Adjustment (Siedentopf Type):  55 to 75mm

Dioptre adjustment on one eyepiece

Bertrand lens with iris diaphragm

Analyser

Slit under the optical head to accept lambda compensating plates (included)

Eyepieces:  10x / 20mm widefield

Objectives:  4x, 10x,, 40x & 60x Infinity Corrected Plan Achromatic

Condenser:  Brightfield Abbe (NA 1.25) with iris diaphragm; Pre-condenser with field diaphragm. Polariser

Stage:  Round, centrable with scale and two stage clips

Focusing Knobs:  Coaxial course and fine with stop and tension adjustment ring

Mains Power:  220 – 240V, 50 / 60Hz

Illumination:  5W LED with intensity control

Supplied With:  Blue and green filter, 2 spare fuses, immersion oil (10ml), soft rubber eyecups, dust cover and instruction manual

Downloads

Click here for download View File
