Description

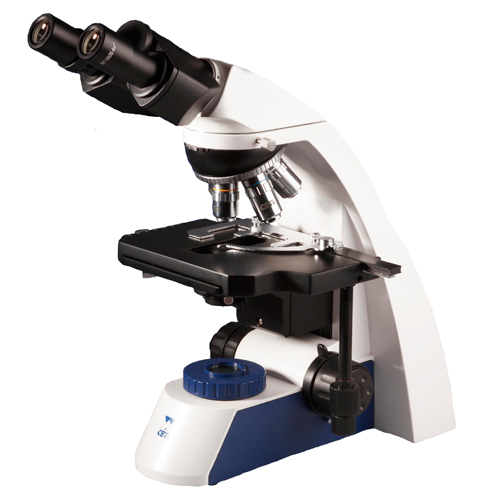

The Ceti Magnum Binocular Compound Microscope with 4x, 10x, 40x, 100x Semi Plan Achromatic Objectives and 3W LED Illumination comes with a choice of objectives and a quintuple reversed nosepiece. It features a robust, sturdy T-shaped base, designed to offer maximum stability. Modern, ergonomic features, such as a 30° inclined eyepiece tube, ensure a comfortable viewing position.
This biological microscope is ideal for routine use in general QC conditions and routine examinations of slide mounted samples. Optional accessories include a polarising set, phase contrast sets, HBO 100W fluorescent attachment, and dark-field condensers.
Features
• Sturdy base for comfortable viewing over long periods
• Widefield 10x / FN 20 eyepieces with dioptric adjustment on one eyepiece tube
• Quintuple, reversed nosepiece with four Semi Plan Achromatic objectives
• Binocular eyepiece tube as standard
• Bright, white LED illumination with intensity control
• Full Köhler illumination
Specification
Optical Head: Binocular, inclined at 30°
Siedentopf: Yes (55 to 75 mm interpupillary distance)
Dioptre: Dioptric adjustment on one eyepiece tube
Eyepieces: 10x / 20 mm widefield
Turret Format Quintuple
Objectives: 4x, 10x, 40x, 100x (oil) Semi-Plan Achromatic
Objective Type: Finite
Condenser: Brightfield Abbe – NA 1.25, pre-condenser with field and Iris diaphragm
Stage Size: Built-in mechanical, 210 x 140 mm with slide holder
Focusing: Coaxial coarse and fine with stop tension adjustment ring
Illumination: 3W LED with intensity control, full Köhler illumination
Package: Blue and green filter, 2 spare fuses, immersion oil (10 ml), soft rubber eyecups, dust cover, tension tool and instruction manual
Additional Features: Dual slide holder, ergonomic carry handle
