Description

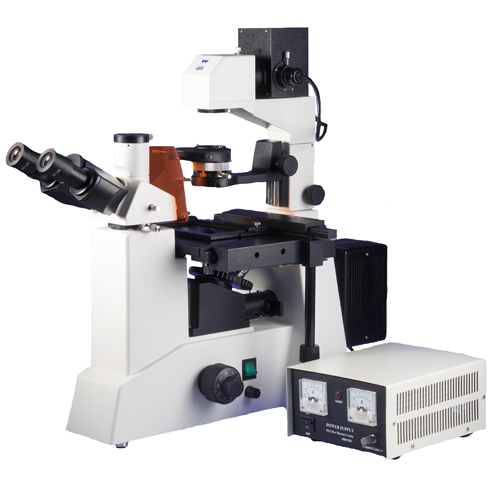

Ceti’s Inverso-TC Trinocular inverted microscope with epi-fluorescence module has been designed to be used in quick and reliable everyday examinations. The surface of its built-in mechanical stage enables excellent visual access to the objective turret.
The Inverso TC-100 inverted microscope is ideal for the typical life science laboratory conducting cell analysis. Built in a robust format and to a high-quality specification, the TC-100 allows for easy; cell analysis during tissue culture, cell harvesting and fluorescence observation.
The TC100 also encompasses an integrated Phase Contrast system, additional stage attachment and five multi sample stage plates to accommodate different types of sample containers.
Features
Inverted Microscope with Epi-Fluorescence Module has been designed to be used in quick and reliable everyday examinations. Supplied with separate HBO 100W power supply.
Five interchangeable stage plates, micro petri dish, multiple slides and multi-well plate types, extra epi-fluorescence blocks available.
Protection barrier to shield UV Light.
Specification
Optical Head: Trinocular, inclined at 45°
Eyepieces: 10x / 22 mm widefield
Turret Format: Quintuple
Siendentopt: Yes (53 to 75 mm interpupillary distance)
Dioptre: Dioptric adjustment on both eyepiece tubes
Objectives: 4x, 40x LWD Plan Achromatic Objectives, PH10x, PH20x, PH40x LWD Plan Achromatic
Objective Type: Finite
Condenser: Brightfield LWD – N.A 0.3: slide annual diaphragm with working distance 72mm (swings across or removable to accommodate tissue culture flasks, roller bottle, cell factory etc), centering device and focusable with rack and pinion height regulation system.
Stage Size: Built-in mechanical, 205 x 220 mm
Focusing: Coaxial coarse and fine, pre-focusing mechanic and tension adjustment ring
Illumination – transmitted: 30W halogen with intensity control
Illumination – reflected: 100W HBO
Package: Two spare fuses, one spare bulb, instruction manual, epi-fluorescence blocks x2 : Blue (Excitation BP460-490) and Green (Excitation BP480-550), max no. blocks x2
Additional Features: Five interchangeable stage plates, micro petri dish, multiple slides and multi-well plate types, extra epi-fluorescence blocks available. Protection barrier to shield UV Light
