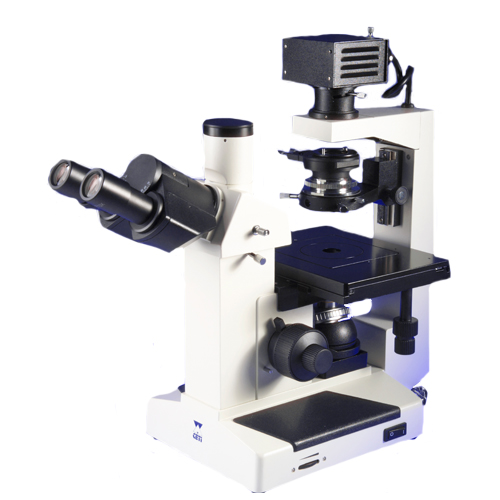

CETI Inverso-TC Trinocular Inverted Biological Microscope

SKU: 3650.0000M
BRAND:

£3,163.94

The CETI Inverso-TC Trinocular Inverted Biological Microscope is a high-quality inverted, trinocular biological microscope designed for life science applications.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The CETI Inverso-TC Trinocular Inverted Biological Microscope is a high-quality inverted, trinocular biological microscope designed for life science applications.

This inverted microscope features a trinocular viewing head inclined at 30° and two 10x/18mm wide-field eyepieces.

Additional information

Pack Size

1

Features

Inverted Biological Microscope is a high-quality inverted, trinocular biological microscope designed for life science applications.

Bright-field and Phase contrast applications.

Specification

Optical Head:

Trinocular, inclined at 30°

Interpupillary Distance Adjustment (Siedentopf Type): 55 to 75mm

Dioptric compensation on one eyepiece tube

Eye Pieces:

10x/18mm wide-field

Vertical photo/video port with beam-splitting prism on sliding mount

Nose Piece:

Quadruple revolving with click stop

Objectives:

10x, 25x, 40x Plan Achromatic (Brightfield)

Phase Contrast: Plan Achromatic objective included PH+ 10x, 25x, and 40x LWD

10x, 25x, and 40x annular phase plates

Centering telescope

Condenser:

Swings across to accommodate tissue culture flasks

Slide annual diaphragm for brightfield – LWD – N.A 0.40 and objective PH+ 10x

Iris diaphragm

Working Distance: 30mm with condenser moved across

Condenser centring device

Focusable with rack and pinion height regulation system

Stage:

Size 220 x 220mm with built-in mechanical stage

Transversal Movement: 110mm

Longitudinal Movement: 75mm

Two interchangeable stage plates (maximum diameter 100mm)

Includes stage for 96 well plates

Focusing Knobs:

Coaxial fine and coarse

Pre-focusing mechanism (on left knob)

Tension adjustment ring (on right knob)

Lamphouse:

Adjustable

Filter Holder:

Green, yellow, and blue filters

Mains Power:

220/240V – 50/60Hz (Euro connector)

Converter:

Built-in low voltage (6V – electronic) with light intensity control

Bulb:

Halogen 6V/20W/G4

Supplied With:

One spare bulb, two spare fuses, and two stage clamps

Packing:

Two Styrofoam shelves and cardboard box

Packing Dimensions:

42 x 31 x 52cm
