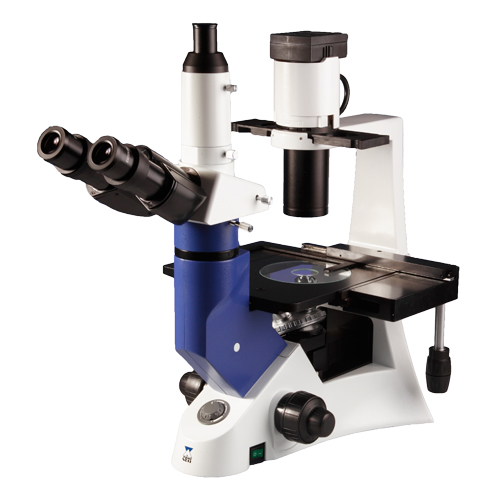

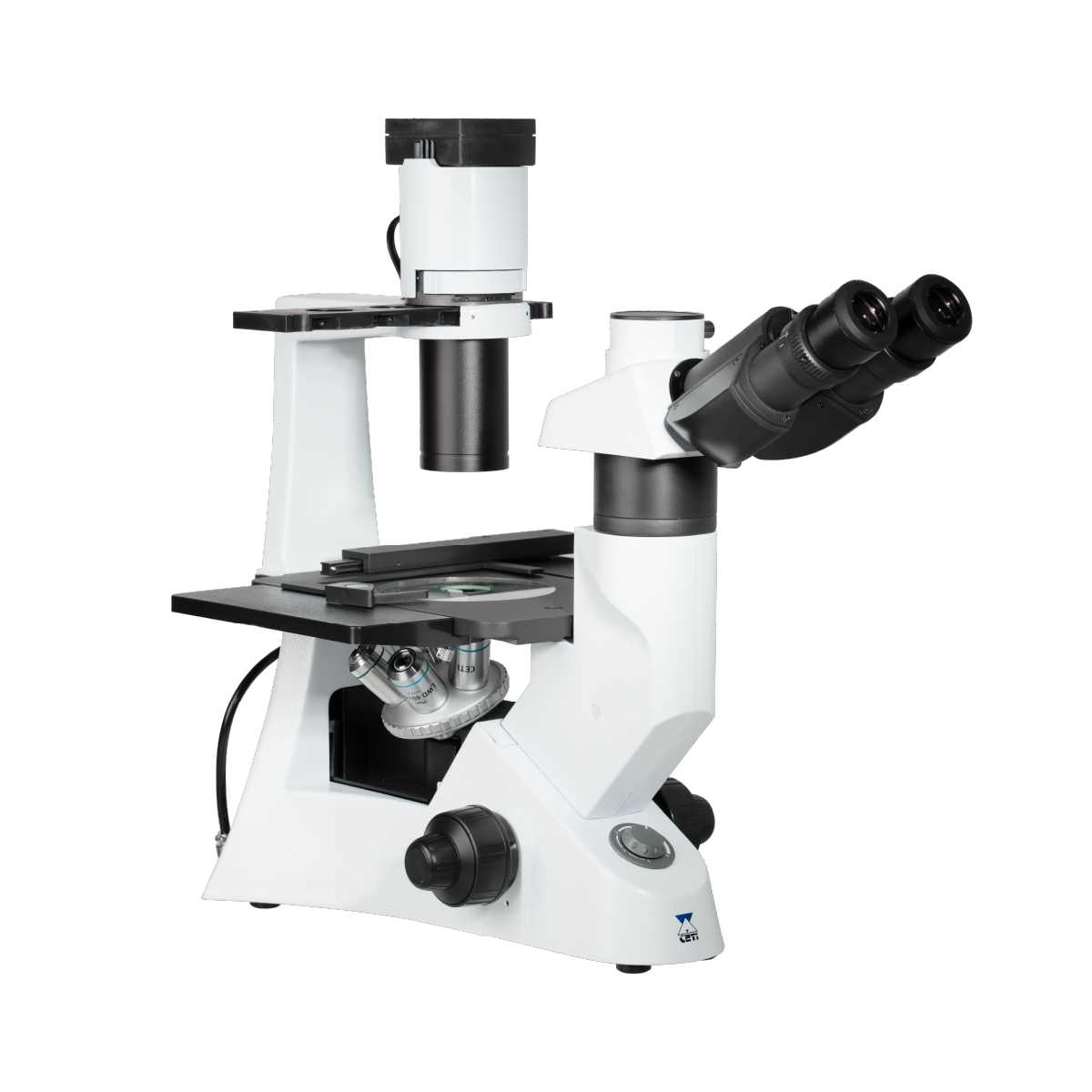

Ceti Inverso TC-100 LED Inverted Biological Microscope

SKU: 3660.5000LED
BRAND:

£2,700.00 £1,890.00

Ceti’s Inverso TC-100 Inverted Biological Microscope is ideal for the typical working laboratory and is built to a high-quality specification.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Ceti’s Inverso TC-100 Inverted Biological Microscope is ideal for the typical working laboratory and is built to a high-quality specification.

It is robust enough to withstand the rigors of constant daily use and is ideal for multiple usage as there is no manual adjustment required. With a quintuple position nose-piece fitted as standard, it is ideally suited for multiple observation techniques and/or magnifications.

Features

Inverted Biological Microscope is ideal for the typical working laboratory and is built to a high-quality specification.

Specification

Optical Head

Trinocular, inclined at 45°

Dioptre correction on one eyepiece tube

Vertical photo/video port with beam-splitting prism on sliding mount (80 – 20%)

Eyepieces:  10x / 22mm widefield

Nosepiece:  Quintuple revolving with click stop

Objectives

Brightfield: 4x, 40x Plan Achromatic LWD

Phase Contrast:  10x, 20x & 40x Plan AchromaticLWD

Phase Contrast Components

Phase slider with two phase rings, 10x & 20x and 40x

Centring telescope

Condenser:  N.A. 0.3; Working distance 72mm (removable to allow for roller bottle, cell factory etc.)

Focusing

Coaxial course and fine

Pre-focusing mechanism (on left knob)

Tension adjustment ring (on right knob)

Illumination:  LED, adjustable, with field diaphragm

Stage:  160 x 250mm with built-in mechanical stage and stage side extension

Supplied With: 1 spare fuse, 1 Allen key (for condenser removal and locking), 2 Allen keys (for phase ring centering), dust cover and instruction manual
