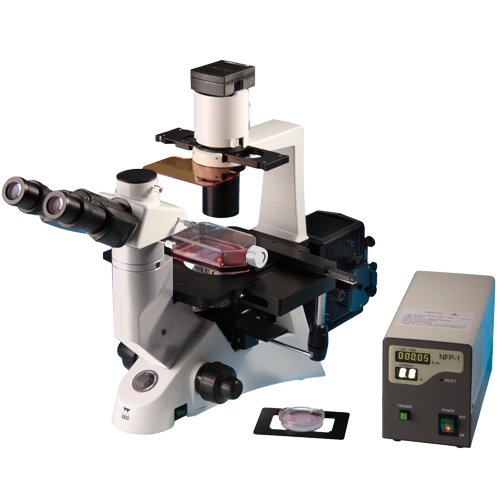

Ceti Inverso TC-100 LED Inverted Biological Fluorescence Microscope

SKU: 3660.8000M
BRAND:

£11,326.33

With an additional fluorescence light source and power supply (HBO 100W), Ceti’s Inverso TC-100 Inverted Biological Fluorescence Microscope is supplied with two sliding filter holders, one containing the blue and green filter blocks.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

With an additional fluorescent light source and power supply (HBO 100W), Ceti’s Inverso TC-100 Inverted Biological Fluorescence Microscope can be used in any working laboratory and is supplied with two sliding filter holders (one containing blue and green filter blocks).

Additional information

Pack Size

1

Features

Inverted Biological Fluorescence Microscope with independnat HBO 100W power supply.

Specification

Optical Head

Trinocular, inclined at 45°

Dioptre correction on one eyepiece tube

Vertical photo/video port with beam-splitting prism on sliding mount (80 – 20%)

Eyepieces:  10x / 22mm widefield

Nosepiece:  Quintuple revolving with click stop

Objectives

Brightfield: 4x, 40x Plan Achromatic LWD

Phase Contrast:  10x, 20x & 40x Plan AchromaticLWD

Phase Contrast Components

Phase slider with two phase rings, 10x & 20x and 40x

Centring telescope

Condenser:  N.A. 0.3; Working distance 72mm (removable to allow for roller bottle, cell factory etc.)

Focusing

Coaxial course and fine

Pre-focusing mechanism (on left knob)

Tension adjustment ring (on right knob)

Illumination

Brightfield/Phase Contrast:  LED, adjustable, with field diaphragm

 Fluorescence:  HBO 100W Ultra Hi-voltage Special Spherical Mercury Lamp

     Protection Barrier:  Barrier to shield eyes from UV light

Stage:  160 x 250mm with built-in mechanical stage and stage side extension

Mains Power:  220 / 240V, 50 / 60Hz (Euro / UK connector)

Supplied With: 1 spare fuse, 1 Allen key (for condenser removal and locking), 2 Allen keys (for phase ring centering), dust cover and instruction manual

Downloads

Click here for download View File
