Ceti Focus II LED Monocular Compound Microscope with 4x, 10x and 40x Achromatic Objectives

SKU: 1100.4400M
BRAND:

£552.08

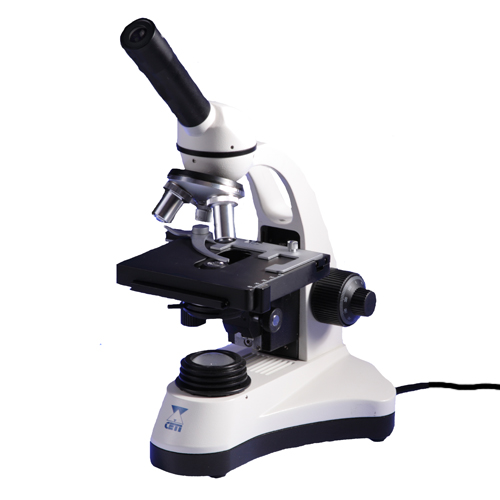

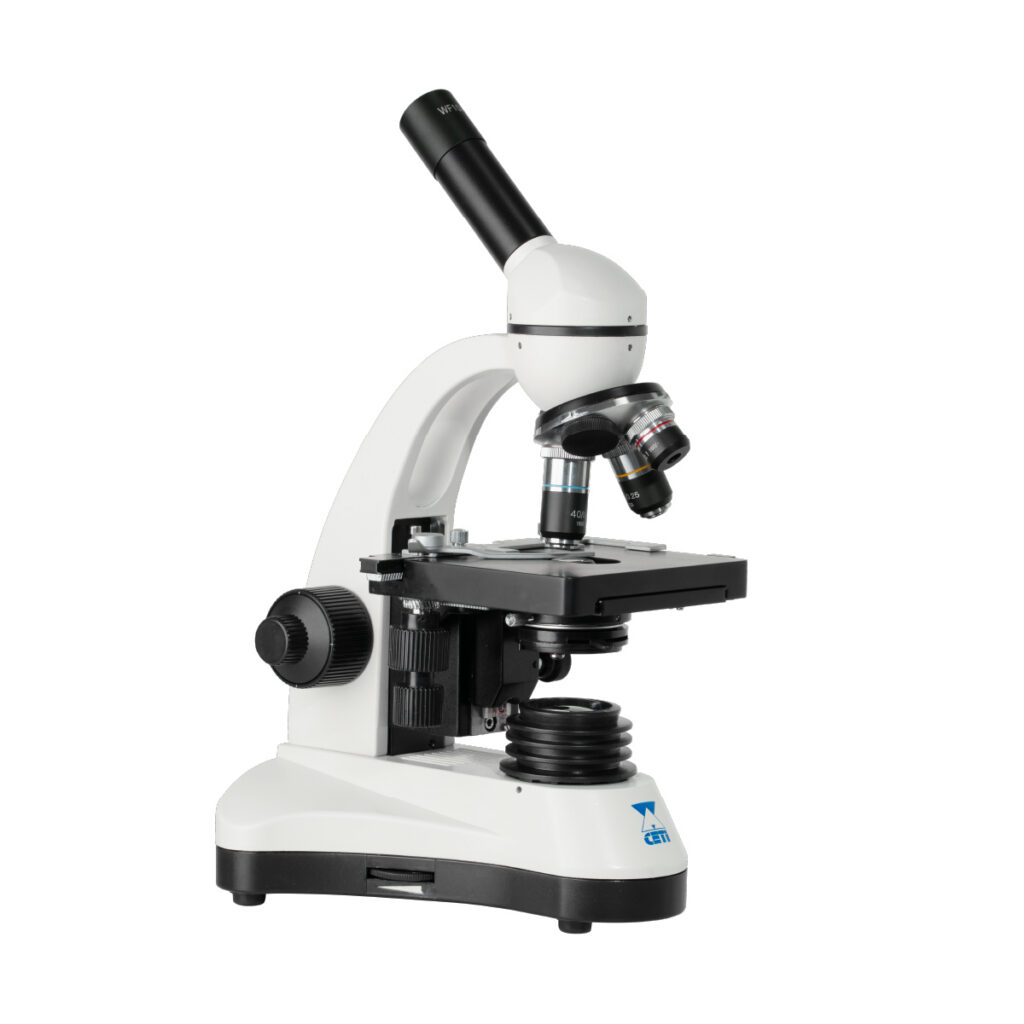

The Ceti LED Focus II Monocular Compound Microscope (4x, 10x, 40x Achromatic) is a college/university student microscope that comes with a built-in carrying handle and LED light source.

Use this quote list to submit your required products to Medline in order for a quotation.
Add to quote list
View quote list
Ask a Question

Description

The Ceti LED Focus II Monocular Compound Microscope (4x, 10x, 40x Achromatic) is a college/university student microscope that comes with a built-in carrying handle and LED light source.

Additional information

Pack Size

1

Features

• Economical electronic microscope with all the basic features required for educational use.
• Comfortable and reliable operation with modern design.
• Achromatic objectives.

Specification

Optical Head:
Monocular, inclined at 45° and 360° (rotatable)
Eyepiece:
10x/18mm wide-field with pointer, mounted student proof
Nose Piece:
Triple, revolving with click stop
Objectives:
4x, 10x, 40x Achromatic
Condenser:
Brightfield Abbe – NA 1.25 with iris diaphragm and blue filter
Rack and pinion adjustment for condenser
Stage:
Size 120 x 120mm with built-in condenser (N.A. 0.65)
Iris diaphragm and filter holder
Slide clamp
Focusing Knobs:
Coaxial coarse and fine
Mains Power:
220 – 240V/50 – 60Hz (Euro connector)
Converter:
Built-in low voltage (12V – electronic) with light intensity control
Illumination (variable):
High intensity 5W LED illumination (110/120W)
Supplied With:
One spare blub, two spare fuses, dust cover, and instruction manual
Packing: Two Styrofoam shelves in a cardboard box
Packing Dimensions (w x d x h): 27.5 x 24.5 x 42.5cm
Gross Weight (kg): 4

Downloads

Click here for download View File
