£2,860.14

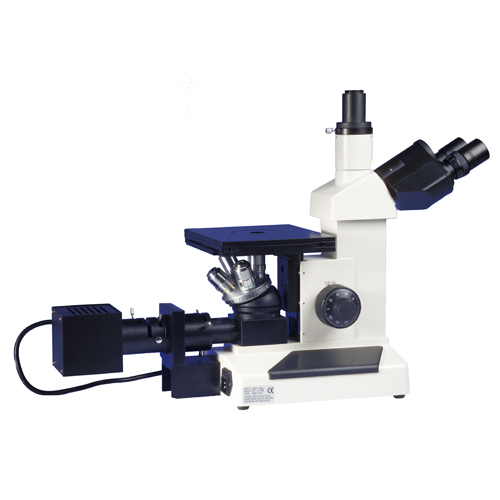

Ceti’s Ferox Trinocular Inverted Materials Microscope is an inverted, trinocular reflected microscope which is ideal for geological and engineering applications.
Ceti’s Ferox Trinocular Inverted Materials Microscope is an inverted, trinocular reflected microscope which is ideal for geological and engineering applications. The quadruple nosepiece accepts the 4 reflected light objectives while the open stage ensures that there are no height or size limitations on the subject material. The rear facing external lamps housing protects both subject and user from adverse heating effects.
Inverted, trinocular reflected microscope with quadruple nosepiece and rear facing external lamps.
Optical Head:
Trinocular, inclined at 30° with vertical photo port
Interpupillary Distance Adjustment (Siedentopf Type): 45 to 75mm
Dioptric compensation on one eyepiece tube
Photo/video port with beam splitting prism on sliding mount (0 – 100%)
Eyepieces:
10x/18mm wide-field
Nosepiece:
Quadruple revolving with click-stop
Objectives:
10x, 25x, 40x, 60x Plan Achromatic LWD
Stage:
Size 150 x 180mm with built-in mechanical stage
Transversal movement: 14mm
Longitudinal movement: 54mm
Focusing:
Coaxial coarse and fine
Pre-focusing mechanism (on right side knob)
Tension adjustment ring (on left side knob)
Illumination:
Halogen variable
External housing with condensing lens and field diaphragm
Iris diaphragm, centrable
Filters: yellow, blue, green (Ø 32mm)
Incident Light: 6V/20W (Halogen lamp)
Supplied With:
1 spare bulb, 1 spare fuse, one stage clamp, dust cover, and instruction manual
Polarisation:
Includes simple polariser and analyser
Main Power:
220 – 240V/50 – 60Hz (Euro connector)
Converter:
Built-in low voltage (6V – electronic) with light intensity control
Packing:
Styrofoam in a cardboard box
Packing Dimensions (W x D x H): 38 x 30 x 45cm
Gross Weight (kg): 11
