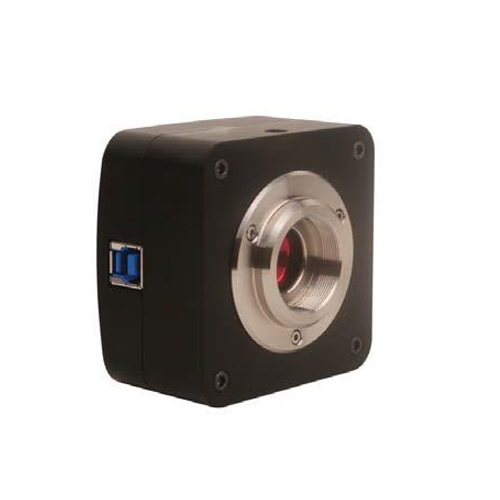

Ceti D18 18MP Digital Microscope Camera with Capture Software

SKU: 9558.0018
BRAND:

£2,463.77

The Ceti D18 18 Mpx. Digital Microscope Camera with Capture Software is a USB 3.0 C-Mount device that utilises an ultra-high performance Aptina CMOS sensor as the image capture device.

Description

The Ceti D18 18Mpx Digital Microscope Camera​ is a USB 3.0 C-Mount device that utilises an ultra-high performance Aptina CMOS sensor as the image capture device.

This digital microscope camera comes with advanced video and image processing software, allowing capture and output on Windows, Linux and Mac OSX platforms. Video can be captured at 1080P resolution at up to 30fps.

The included 12-bit software has processing controls for demosaic adjustments, automatic exposure, gain adjustment, one click white balance, chrominance adjustment, saturation adjustment, gamma correction, luminance adjustment and contrast adjustment.

The camera is designed for use with brightfield applications and is ideal if high resolution, large-scale prints (such as presentation posters) are required.​

Additional information

Pack Size

1

Features

  • USB 3.0 C-Mount Camera
  • Aptina CMOS sensor as the image capture device
  • 1080P resolution at up to 30fps
  • Power Supply: USB port
  • Operating System: Microsoft® Windows® XP/Vista/7/8/10 (32 & 64 bit), Mac OS X, Linux
  • PC Requirements: CPU: Equal to Intel Core 2 2.8GHz or higher; Memory: 2GB or more; USB Port: USB 3.0 High-Speed; CD-ROM

Specification

Sensor & Size: 18M/AR1820(C); 6.14 x 4.61µm

Pixel Size (µm): 1.25 x 1.25

Dynamic Range (dB): 65.8

SN Ratio (dB): 36.3

Frames per Second (FPS): 13.1 FPS (Resolution) 4912 x 3684; 34.3 FPS (Resolution) 2456 x 1842; 54.4 FPS (Resolution) 1228 x 922

Binning: 1 x 1, 2 x 2 and 4 x 4

Exposure: 0.1ms~2s

White Balance: ROI White Balance/Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Recording System: Still Image and Movie

Cooling System: None

Conditions

Operating Temperature (°C): -10 to +50

Storage Temperature (°C): -20 to +60

Operating Humidity (%RH): 30 to 80

Storage Humidity (%RH): 10 to 60

Other Features

Power Supply: USB port

Operating System: Microsoft® Windows® XP/Vista/7/8/10 (32 & 64 bit), Mac OS X, Linux

PC Requirements: CPU: Equal to Intel Core 2 2.8GHz or higher; Memory: 2GB or more; USB Port: USB 3.0 High-Speed; CD-ROM

Downloads

Click here for download View File
