Description

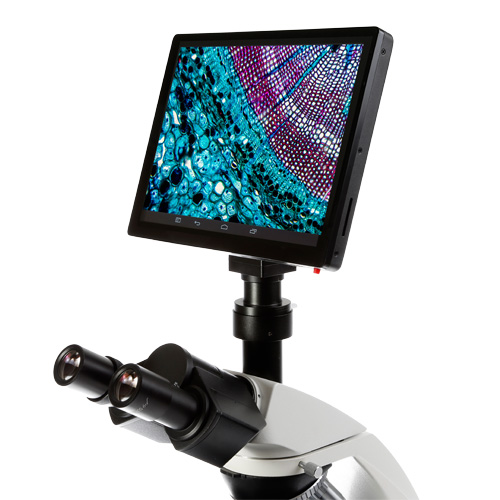

Ceti’s 5 Mpx Digi-Pad Microscope Tablet Camera is specially designed for microscopy applications. It comes with a high-definition 9.7 ich″ colour LCD screen and is equipped with software that allows the user to capture images/videos, preview images, set the white balance, sharpness, colour, flip images, mirror images as well as having measurement and annotation capabilities. This modern CMOS microscope camera has an integral C-mount fitting, which can be connected to any microscope with a corresponding C-Mount or eyepiece adapter.
Features
5 Mpx Microscope’Tablet’ Camera
Storage: External TF memory card – up to 32GB (not provided), ROM 2GB, RAM 1GB DDR3
Network: Wi-Fi and Bluetooth 4.0
Input/Output: Micro HDMI Output, DC5V power, SD memory card slot, x2 USB2 supporting USB drive for saving/uploading images or for USB keyboard and mouse.
Operating System and Software: Android and S-Eye built in imaging software
Dimensions; L x H x W (mm): 281 x 179 x 15.6
Weight (Kg): 0.6
Specification
Screen/Panel: Panasonic IPS LCD screen (Super TFT)
Input Video Format: HDMI
Native Resolution: 1920 x 1080
Display Type: 16.9 Ratio, 11.6″ Active Matrix Super TFT LCD
Typical Contrast Ratio: 1000:1
Colours: 16.7 million
Frames per Second (FPS): 15 FPS (Resolution) 2048 x 1536
Viewing Angle (L/R/U/D): IPS full view
9.7 “ Active Colour Touch Screen
Display W x H (mm): 258 x 145
Pixel Pitch; W x H (mm): 0.134 x 0.134
Brightness: 350cd/sq. m
Backlight: LED backlight; 50,000 hours
Temperature (°C): -15 to +55
Operating Humidity (%RH): 10 to 90
Storage Humidity (%RH): 5 to 90
Synchronization Range: 30 – 80 KHz horizontal, 55 – 75 KHz vertical
Power Supply: AC 110V – 220V/DC12V/1A
Power Consumption: Max. 12W
